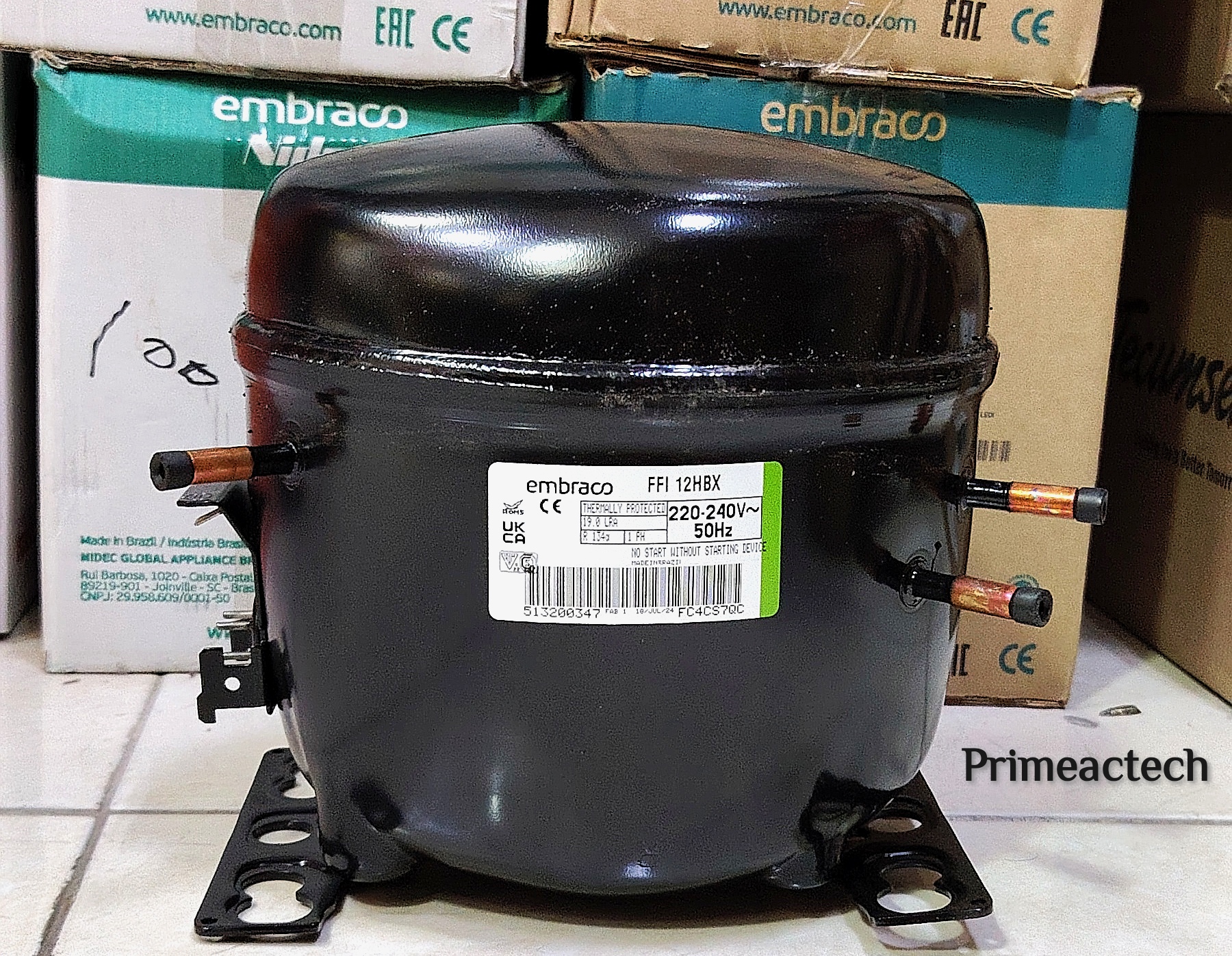

The Embraco FFI12HBK (commonly searched as FFI12HBX) is a high-quality hermetic refrigeration compressor that delivers reliable cooling performance for domestic and light commercial refrigeration systems. Known for durability and stable operation, this model operates on 220–240V / 50Hz, making it suitable for regions using this power supply standard. In this article, we will explain its technical details, electrical assembly components, wiring diagram overview, and installation guidance — based on the official technical information sheet. EMBRACO Compressor FFI12HBK 1/3+HP 220–240V / 50Hz.
Compressor FFI12HBK Electrical Instructions

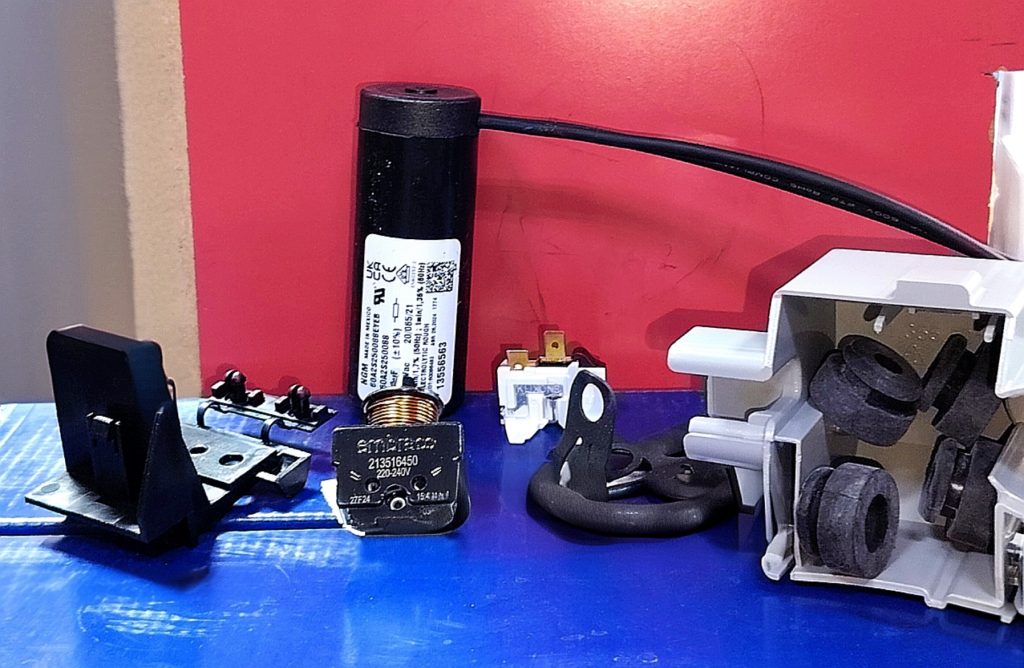

According to the technical sheet provided by Embraco, the compressor uses several important electrical components to ensure safe starting and reliable continuous operation. The assembly system protects the motor and delivers smooth performance during startup and normal operation. The main components include a start capacitor, which provides extra torque during startup; a relay, which controls the start winding circuit and disconnects it once the compressor reaches operating speed; and an overload protector, which safeguards the compressor against overheating and overcurrent. In addition, the capacitor holder securely mounts the capacitor in place, the protective cover shields the electrical terminals from external damage, and the cord relief prevents wire stress and accidental disconnection.Technicians must properly install and correctly connect each component to ensure safe operation, long service life, and optimal compressor performance.
Model FFI12HBK Technical Data Information
Model: FFI12HBK 220–240V / 50Hz
Electrical Wiring Diagram Explanation
The diagram provided in the technical sheet illustrates the internal electrical connections between the start capacitor, relay, compressor motor windings, and overload protector. The compressor features three motor terminals: C (Common), M (Main or Run winding), and S (Start winding). When 220–240V AC power supplies the unit, the relay activates and engages the start capacitor to provide additional starting torque to the motor. This extra torque helps the compressor start smoothly and efficiently. Once the compressor reaches its normal running speed, the relay automatically disconnects the start capacitor from the circuit. Meanwhile, the overload protector continuously monitors temperature and current levels to prevent overheating or electrical damage. Overall, this simple yet effective electrical system ensures safe, reliable, and efficient compressor startup and operation.
External Dimensions and Configuration of FFI12HBK
The technical drawing presents the external view and main dimensions of the compressor, clearly outlining its physical configuration and connection points. Important connection details include the copper connector sizes used for refrigeration piping.The suction line measures 8.2 mm in diameter and uses copper material, while the process tube and discharge line each measure 6.5 mm in copper. These specified tube sizes must properly match the refrigeration system piping to ensure correct installation, maintain system efficiency, and prevent issues such as refrigerant leakage or pressure imbalance. Proper alignment and brazing of these copper connections are essential for safe and long-lasting compressor operation.
Installation Guidelines of FFI12HBK for Technician
Proper installation is very important for extending the compressor’s lifespan and ensuring reliable performance. Technicians should first confirm that the power supply matches the required 220–240V / 50Hz before connecting the unit. It is also essential to install the correct start capacitor and relay according to the manufacturer’s specifications to ensure smooth starting and proper motor protection. Technicians should mount the compressor securely to minimize vibration and prevent noise or mechanical stress during operation. Before charging the system, always verify refrigerant compatibility to avoid chemical damage or performance issues. Also, align and braze the suction and discharge lines correctly to prevent leaks and maintain proper system pressure. Finally, dispose of or recycle old components according to environmental regulations and safety standards when replacing a compressor.
