The Hermetic Compressor GQR16TG 1/2+ HP R134A is a reliable refrigeration compressor designed for medium-temperature cooling systems. In particular, many technicians use this compressor in commercial refrigerators, beverage coolers, display freezers, and small cold storage units. Moreover, its compact design, strong cooling performance, and energy efficiency make it a popular choice among HVAC technicians and refrigeration professionals. Therefore, the Hermetic Refrigerant Compressor GQR16TG 1/2+HP R134A has become a dependable solution for many commercial refrigeration applications.
In this guide, we explain the main features, working principle, specifications, applications, and maintenance requirements of the GQR16TG 1/2+ HP compressor. Additionally, this information helps technicians and system installers understand how the compressor operates and how to maintain it for long-term performance.
Overview of Hermetic Compressor GQR16TG

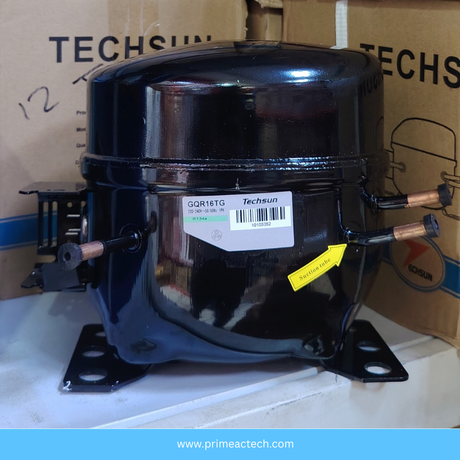

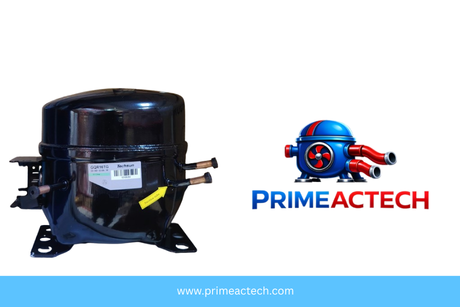

The GQR16TG hermetic compressor is built as a sealed unit where the motor and compression mechanism are enclosed in a welded steel shell. This design prevents refrigerant leakage and protects internal components from contamination.
The compressor operates with R134A refrigerant, which is commonly used in modern refrigeration systems due to its good thermodynamic properties and relatively low environmental impact.
With a power rating of 1/2+ horsepower, the GQR16TG compressor provides strong and stable cooling performance for medium-sized refrigeration systems.
Hermetic Compressor GQR16TG 1/2+ HP R134A – Specifications, Features & Applications
GQR16TG Compressor Specifications Table
| Specification | Details |
|---|---|
| Model | GQR16TG |
| Compressor Type | Hermetic |
| Horsepower | 1/2+ HP |
| Refrigerant | R134a |
| Voltage / Frequency | 220–240V / 50Hz |
| Displacement | 15.3 cm³/rev |
| Cooling Capacity (-15°C) | 580 W / 1979 Btu/h |
| Cooling Capacity (-10°C) | 754 W / 2573 Btu/h |
| Cooling Capacity (-5°C) | 1012 W / 3453 Btu/h |
| Cooling Capacity (0°C) | 1252 W / 4272 Btu/h |
| Cooling Capacity (ASHRAE) | 1490 W / 5084 Btu/h |
| Input Power | 596 W |
| Current | 2.80 A |
| COP | 2.50 |
| EER | 8.53 Btu/W·h |
| Cooling Capacity (10°C) | 1535 W / 5237 Btu/h |
| Motor Type | CSIR |

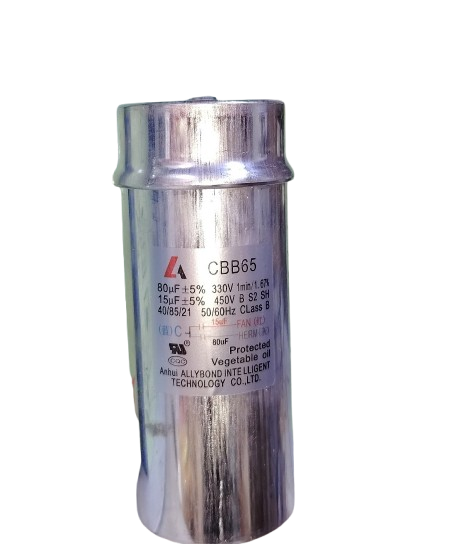

| Starting Capacitor | 80 µF |
| Running Capacitor | Not Required |
| Cooling Method | Fan (F) |
| Certificate | CCC |
| Evaporating Temp (∘C) | Cooling Capacity (W) |
| -30 | / |
| -25 | / |
| -23.3 | / |
| -20 | / |
| -15 | 476 |
| -10 | 588 |
| -5 (Standard) | 718 |
| 0 | 1134 |
| 5 | 1388 |
| 7.2 | 1492 |
| 10 | 1671 |
| Model | HP | Displacement (cm3) | Cooling Capacity (W) | Input Power (W) | COP (W/W) | Start Cap. (μF) |
| GQR70TG | 1/4 | 7.0 | 720 | 340 | 2.10 | / |
| GQR80TG* | 1/4+ | 8.3 | 880 | 391 | 2.25 | 80 |
| GQR90TG | 1/3- | 9.0 | 970 | 366 | 2.65 | 60 |
| GQR90TG* | 1/3- | 9.5 | 990 | 440 | 2.25 | 80 |
| GQR11TG | 3/8 | 11.4 | 1180 | 454 | 2.60 | 80 |
| GQR12TG | 3/8+ | 12.7 | 1300 | 500 | 2.60 | 80 |
| GQR14TG | 1/2 | 14.3 | 1450 | 580 | 2.50 | 80 |
| GQR16TG | 1/2+ | 15.3 | 1490 | 596 | 2.50 | 80 |
| GQR19TG | 3/4 | 18.0 | 1645 | 774 | 2.13 | 80 |
Working Principle of the GQR16TG Compressor
The GQR16TG hermetic compressor works by compressing low-pressure refrigerant vapor from the evaporator and sending it to the condenser at high pressure.
The process occurs in several steps:
- Suction Stage – Low-pressure refrigerant gas enters the compressor from the evaporator.
- Compression Stage – The motor-driven piston compresses the refrigerant gas, increasing its pressure and temperature.
- Discharge Stage – The high-pressure refrigerant gas flows to the condenser.
- Condensation Process – In the condenser, the refrigerant releases heat and turns into liquid.
This continuous cycle produces the cooling effect inside refrigeration equipment.
GQR16TG Compressor Datasheet
Conclusion
The Hermetic Compressor GQR16TG 1/2+ HP R134A is a dependable and efficient refrigeration compressor designed for medium-temperature cooling systems. Its hermetic sealed construction, compatibility with R134A refrigerant, and strong cooling capacity make it a popular choice for commercial refrigeration equipment.
With proper installation and regular maintenance, the GQR16TG compressor can deliver stable performance, energy efficiency, and long service life in various refrigeration applications.
