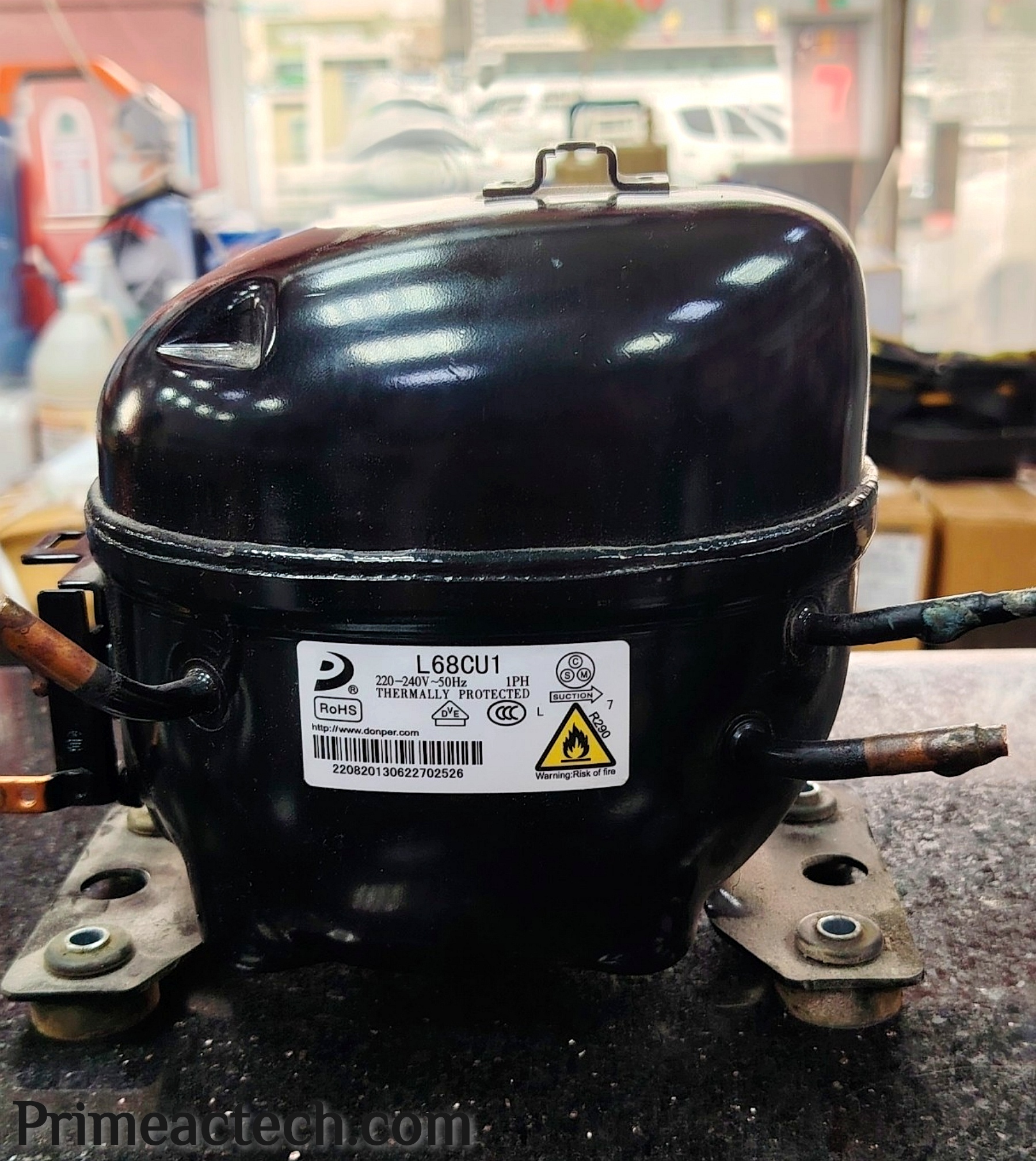

The Refrigerant Compressor L68CU1 DONPER 3/8HP R290 is a compact and efficient compressor widely used in modern refrigeration systems. Manufacturers design this compressor to deliver reliable cooling performance while maintaining low energy consumption. Because it uses R290 refrigerant (propane), the unit also supports environmentally friendly refrigeration solutions. Refrigerant Compressor L68CU1 DONPER 3/8hp R290. As energy efficiency and sustainability become increasingly important in the HVAC and refrigeration industries, compressors like the DONPER L68CU1 have become a popular choice for both domestic and light commercial applications.
Overview of the Donper L68CU1 Compressor
The Donper L68CU1 3/8HP compressor is built to provide stable operation and long service life. It uses advanced compressor technology to maintain consistent pressure and temperature control within refrigeration systems. Due to its compact design, technicians can easily install it in small refrigerators, beverage coolers, display cabinets, and other refrigeration equipment.
Another advantage of this compressor is its compatibility with R290 refrigerant, which has a very low Global Warming Potential (GWP). As a result, manufacturers and technicians prefer this compressor when designing environmentally responsible cooling systems.
Technical Specifications of DONPER L68CU1
Although specifications may vary slightly depending on the manufacturer or the specific application, the DONPER L68CU1 3/8HP compressor generally follows a standard set of technical specifications. The compressor model is L68CU1, manufactured by DONPER , and it operates with a 3/8 horsepower motor that provides reliable cooling performance for refrigeration systems. In addition, the compressor uses R290 (propane) refrigerant, which is known for its excellent cooling efficiency and environmentally friendly properties. It features a hermetic compressor design, meaning the motor and compression mechanism are sealed within a single unit to ensure stable operation and reduced risk of refrigerant leakage. The unit typically operates on a 220–240V power supply with a frequency of 50–60Hz, making it compatible with many standard electrical systems. Because of these specifications, the L68CU1 compressor is well suited for medium-capacity refrigeration units such as refrigerators, bottle coolers, and small commercial cooling equipment.
Key Features of the Donper L68CU1 3/8HP Compressor
The Donper L68CU1 compressor offers several features that make it suitable for modern refrigeration systems.
1.High Energy Efficiency
This compressor operates with optimized motor performance, which helps reduce electricity consumption while maintaining strong cooling capacity.
2. Eco-Friendly Refrigerant (R290)
The compressor uses R290 refrigerant, known for its low environmental impact and excellent thermodynamic properties. This allows refrigeration systems to operate efficiently while reducing greenhouse gas emissions.
3. Compact and Lightweight Design
The L68CU1 compressor features a small and lightweight structure. Therefore, manufacturers can easily integrate it into various refrigeration appliances without requiring large installation space.
4. Reliable and Durable Operation
Donper designs its compressors with durable internal components that withstand continuous operation. As a result, the compressor provides stable performance and a longer service life.
5. Low Noise Operation
Another important feature is its quiet performance. The compressor operates smoothly and produces minimal vibration, making it ideal for residential and commercial environments where noise control matters.

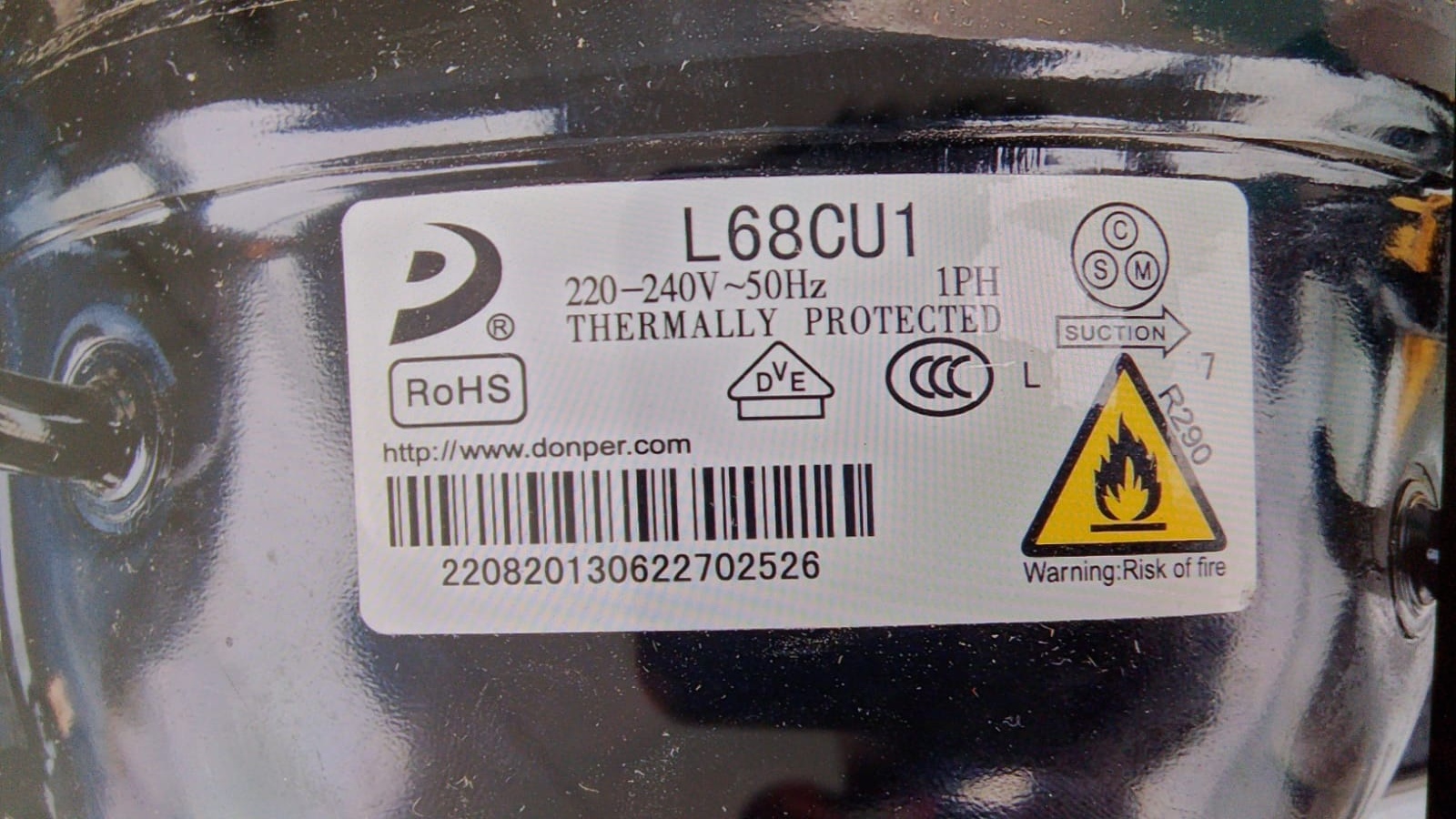

Details of DONPER L68CU1 Compressor
Basic details of this compressor is following:
| COMPANY | DONPER |
| FULL MODEL | L68CU1 |
| VOLTAGE | 220-240v |
| FREQUENCY | 50hz |
| HORSEPOWER | 3/8hp |
| COMPRESSOR TYPE | Hermatic |
| REFRIGERANT | R290A |
| APPLICATION | LBP & MBP |
| COOLING CAPACITY | 325-330W |
| MOTOR TYPE | RSIR |
| DISPLACEMENT | 6.8cc |
| HEIGHT | 165mm |
| WEIGHT | APPROX 8.2KG |
| ORIGIN | CHINA |
Applications of DONPER L68CU1 Compressor
The Donper L68CU1 R290 compressor is commonly used in various refrigeration systems. Because of its efficiency and compact design, manufacturers install it in many types of cooling equipment.
1. Domestic Refrigerators: It provides stable cooling for household refrigerators while maintaining energy efficiency.
2. Bottle Coolers and Beverage Refrigerators: Commercial beverage coolers require consistent temperature control, and this compressor delivers reliable performance.
3. Display Refrigeration Cabinets: Retail stores and supermarkets use refrigeration display cabinets that depend on efficient compressors to keep products fresh.
4. Small Freezers: The compressor can also support small freezer units used in homes, restaurants, or small businesses.
Best Advantages of Using R290 Refrigerant
One of the most important aspects of the Donper L68CU1 compressor is its use of R290 refrigerant. This refrigerant offers several benefits compared to traditional refrigerants. First, R290 has a very low Global Warming Potential, which makes it environmentally friendly. Second, it provides excellent heat transfer performance, improving cooling efficiency. In addition, refrigeration systems using R290 often consume less electrical power, which helps reduce operating costs. Because of these advantages, many refrigeration manufacturers now prefer R290-based compressors for modern equipment.
Installation and Maintenance Tips
Proper installation and maintenance help ensure the compressor operates efficiently for many years. Technicians should always install the compressor in a well-ventilated location to allow proper heat dissipation. Additionally, they must ensure correct electrical connections and refrigerant charging to avoid performance issues. Regular maintenance is also essential. Technicians should inspect the system for refrigerant leaks, electrical faults, and airflow restrictions. By performing routine checks, users can maintain optimal cooling performance and extend the life of the compressor.
Conclusion
The Refrigerant Compressor L68CU1 Donper 3/8HP R290 is a reliable and energy-efficient solution for modern refrigeration systems. Its compact design, eco-friendly refrigerant, and stable performance make it an excellent choice for domestic and light commercial applications. With proper installation and maintenance, this compressor can provide consistent cooling performance while supporting environmentally responsible refrigeration technology.
