The KULTHRON KIRBAY Compressor 3/8HP AE2416Y R134A delivers high-performance cooling for both commercial and domestic refrigeration systems. In addition, this compressor provides stable cooling capacity, energy-efficient operation, and long service life. As a result, it helps maintain consistent temperature control in various refrigeration applications. For this reason, technicians and refrigeration equipment manufacturers widely use it in display refrigerators, beverage coolers, and small refrigeration units. Overall, the KULTHRON KIRBAY Compressor AE2416Y 3/8HP R134A offers dependable performance for systems that require efficient and continuous cooling.
The compressor uses R134A refrigerant, and modern refrigeration systems rely on this refrigerant because it provides efficient cooling and creates a lower environmental impact than older refrigerants. Its durable hermetic design protects internal components from moisture and dust, ensuring dependable performance in demanding refrigeration environments.

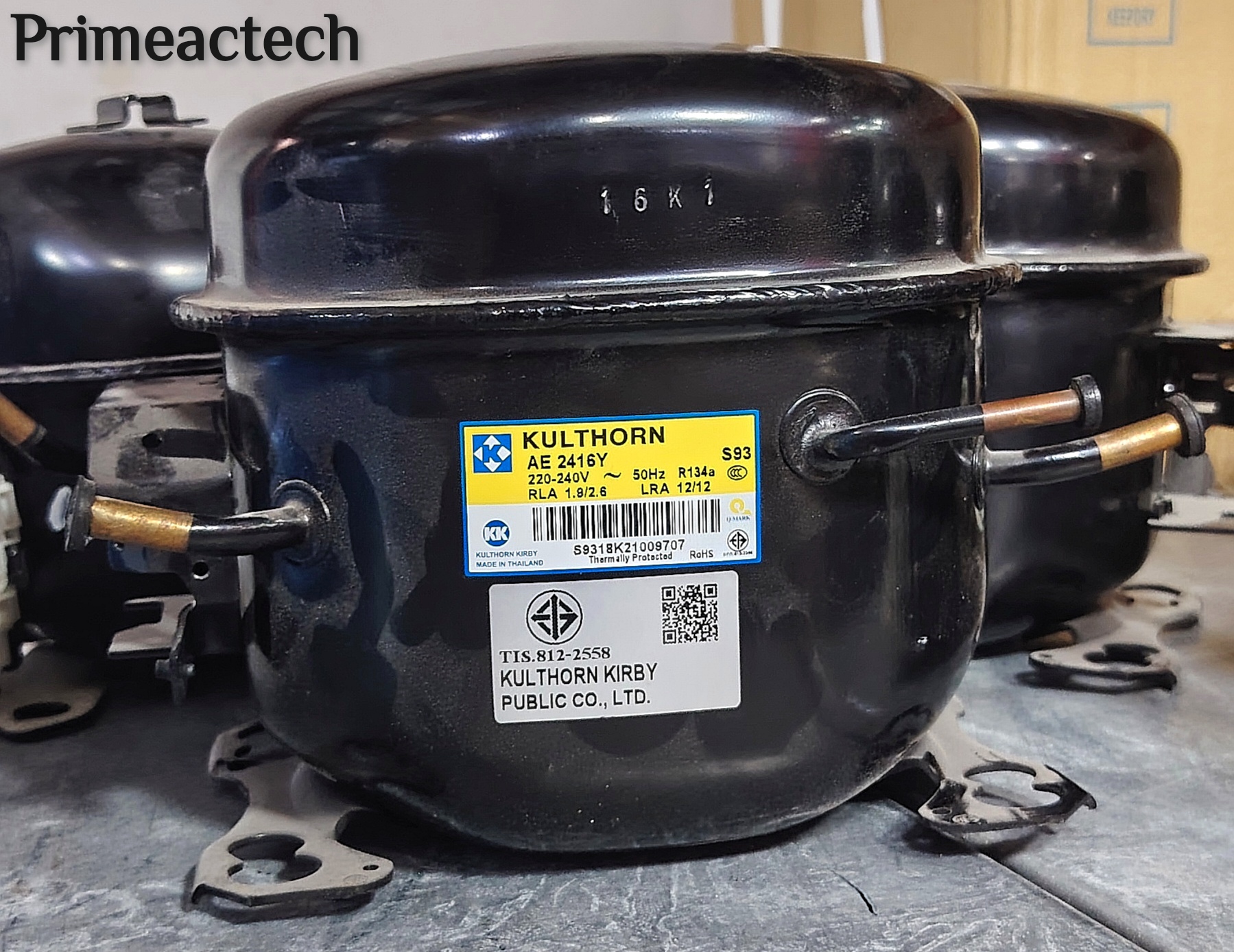

KULTHRON KIRBAY AE2416Y Compressor Overview
The KULTHRON KIRBAY AE2416Y 3/8HP compressor delivers stable cooling performance even during continuous operation. The compressor supports medium to low-temperature refrigeration applications and works efficiently in commercial cooling equipment.
In addition, this compressor delivers steady performance in many refrigeration applications. It uses R134A refrigerant, which modern refrigeration systems prefer for its efficiency and improved environmental performance. The hermetic design protects the internal components from dust, moisture, and external contamination, helping the compressor maintain reliability and achieve a longer service life.
Its compact structure and efficient motor design help maintain strong cooling output while reducing energy consumption. The compressor also operates with relatively low vibration and noise, which makes it suitable for installations in shops, restaurants, and supermarkets.
Performance Data of KULTHRON COMPRESSOR AE2416Y
| MODEL | POWER | DISP | MOTOR TYPE | STARTING CAP | RUNNING CAP | HEIGHT |
| 3/8 | 12.50 | 194 | CSR | 36~43uf/330 | 8uf/450 | 184mm |
Evaporating Temperature -23.3°C
| Watt | BTU | Input | COP |
| 380 | 1297 | 280 | 1.36 |
Key Features of the KULTHRON KIRBAY AE2416Y Compressor
Several important features make the KULTHRON KIRBAY AE2416Y 3/8HP compressor a reliable choice for refrigeration systems. The compressor delivers efficient cooling performance, maintaining consistent refrigeration even during continuous operation. Its 3/8 horsepower motor provides sufficient power for medium refrigeration loads used in commercial cooling equipment. The compressor is designed to operate with R134A refrigerant, a widely used and efficient refrigerant in modern refrigeration systems. It also uses a CSR (Capacitor Start and Run) motor type, which ensures smooth starting and efficient running performance. In addition, the compressor operates with low noise and minimal vibration, making it suitable for commercial environments. The durable hermetic construction seals and protects the internal components, helping to improve reliability and extend the overall lifespan of the compressor.
Specifications of AE2416Y Compressor
| COMPANY | KULTHRON KIRBAY |
| MODEL | AE2416Y |
| REFRIGERANT | R134A |
| FREQUENCY | 50HZ |
| COMPRESSOR TYPE | HERMATIC |
| VOLTAGE | 220-240V |
| HORSE POWER | 3/8HP |
| PHASE | 1 phase |
| Displacement | 12.50 cm³ |
| Motor Type | CSR (Capacitor Start & Run) |
| Starting Capacitor | 36–43 µF / 330V |
| Running Capacitor | 8 µF / 450V |
| Application | Commercial refrigeration systems |
| Compressor Height | 184 mm |
| ORIGIN | THAILAND |
How the KULTHRON KIRBAY AE2416Y Compressor Works
The AE2416Y compressor works using the standard refrigeration compression cycle. This cycle includes four main stages that allow the refrigeration system to remove heat from the cooling space.
- 1. Compression Stage: The compressor draws low-pressure refrigerant vapor from the evaporator and compresses it into high-pressure, high-temperature vapor.
- 2. Condensation Stage: The compressed refrigerant travels to the condenser, where it releases heat to the surrounding air and condenses into a liquid.
- 3. Expansion Stage: The liquid refrigerant passes through an expansion device such as a capillary tube or expansion valve, which reduces its pressure and temperature.
- 4. Evaporation Stage: The low-pressure refrigerant enters the evaporator and absorbs heat from the refrigeration compartment. This heat absorption creates the cooling effect. The refrigerant then returns to the compressor, and the cycle repeats continuously to maintain the desired temperature.
Maintenance Tips for Longer Compressor Life
To ensure optimal performance and longer service life of the KULTHRON KIRBAY AE2416Y compressor, proper maintenance is essential. Technicians should regularly clean condenser coils, maintain correct refrigerant levels, and ensure proper ventilation around the refrigeration system. Electrical components such as starting and running capacitors should also be checked periodically to prevent system failure. Routine maintenance not only improves cooling efficiency but also helps prevent overheating and unnecessary compressor wear.
Proper maintenance is essential to ensure the long-term performance of any refrigeration compressor. Following these maintenance tips can help improve the lifespan and efficiency of the KULTHRON KIRBAY AE2416Y compressor.
- Clean the Condenser Coils
- Check Refrigerant Levels
- Inspect Electrical Components
- Maintain Proper Airflow
- Monitor Operating Voltage
Conclusion
The KULTHRON KIRBAY Compressor 3/8HP AE2416Y R134A is a reliable and efficient refrigeration compressor designed for both commercial and domestic cooling systems. In addition, its durable hermetic construction, CSR motor design, and compatibility with R134A refrigerant allow the compressor to deliver stable cooling performance and long service life. Moreover, its balanced cooling capacity, energy-efficient operation, and versatile applications make it suitable for refrigerators, beverage coolers, display chillers, and small cold storage units. When properly maintained, the AE2416Y compressor can provide consistent and dependable refrigeration performance for many years. Therefore, for technicians and refrigeration system manufacturers looking for a reliable 3/8HP compressor, the KULTHRON KIRBAY AE2416Y remains a practical and effective choice.
Its balanced cooling capacity, energy-efficient operation, and versatile applications make it suitable for refrigerators, beverage coolers, display chillers, and small cold storage units. When properly maintained, the AE2416Y compressor can provide consistent and dependable refrigeration performance for many years.
For technicians and refrigeration system manufacturers looking for a reliable 3/8HP compressor, the KULTHRON KIRBAY AE2416Y is a practical and effective choice.
