In an HVAC system, the expansion valve plays a small but very important role in the cooling process. After the refrigerant leaves the condenser as a high-pressure liquid, it passes through the expansion valve, where its pressure suddenly drops. This drop in pressure causes the refrigerant to cool quickly and partially turn into a low-temperature mixture of liquid and vapor. The cold refrigerant then enters the evaporator coil, where it absorbs heat from the indoor air and produces the cooling effect we feel from an air conditioner or refrigeration system. At the same time, the expansion valve carefully controls how much refrigerant enters the evaporator, ensuring the system runs efficiently and preventing excess liquid refrigerant from returning to the compressor. How an Expansion valve works in HVAC.
What is an Expansion Valve?
An expansion valve is a key component in refrigeration and HVAC systems that controls the flow of refrigerant into the evaporator. It reduces the pressure of the high-pressure liquid refrigerant coming from the condenser, which causes the refrigerant to cool rapidly before entering the evaporator coil. This pressure drop allows the refrigerant to absorb heat from the surrounding air, producing the cooling effect needed in air conditioners and refrigeration equipment. By regulating the amount of refrigerant entering the evaporator, the expansion valve helps maintain system efficiency, protects the compressor from liquid refrigerant return, and ensures stable and effective cooling performance.
Expansion Valve and their Importance
An expansion valve is a vital component in refrigeration and HVAC systems because it controls the flow and pressure of refrigerant entering the evaporator. After the refrigerant leaves the condenser as a high-pressure liquid, the expansion valve reduces its pressure and allows it to expand into a low-temperature mixture of liquid and vapor. How an Expansion valve works in HVAC. This process prepares the refrigerant to absorb heat efficiently inside the evaporator coil.
The valve also regulates the amount of refrigerant entering the evaporator, ensuring that the system receives the correct flow for effective cooling. Because of this control, the expansion valve helps maintain proper system efficiency, prevents liquid refrigerant from returning to the compressor, and supports stable temperature regulation. Without a properly functioning expansion valve, the refrigeration system may experience poor cooling performance, increased energy consumption, and possible compressor damage, which makes this component extremely important for reliable HVAC operation. How an Expansion valve works in HVAC.

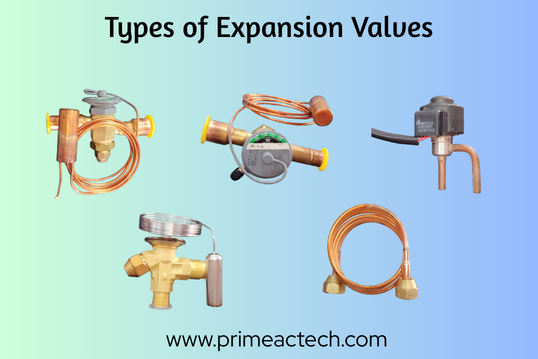

What are the main Types of Expansion Valves?
Several types of expansion valves are used in refrigeration and HVAC systems, and each type controls the flow of refrigerant in a different way. The most common type is the Thermostatic Expansion Valve (TXV), which automatically adjusts refrigerant flow based on the temperature at the evaporator outlet to maintain efficient cooling. Another modern option is the Electronic Expansion Valve (EEV), which uses electronic sensors and controllers to regulate refrigerant flow with very high precision, making it popular in advanced and energy-efficient HVAC systems.

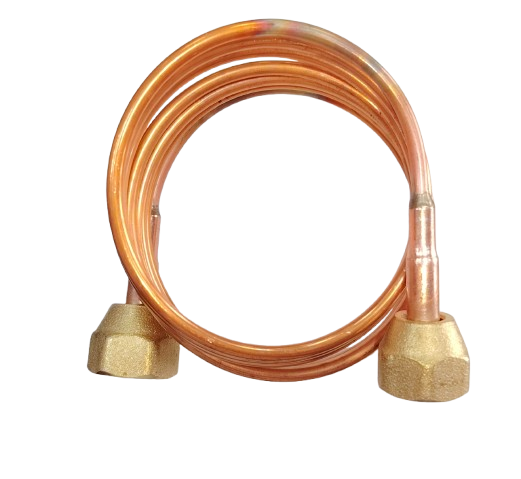

The Capillary Tube is a simple and inexpensive expansion device often used in small appliances such as domestic refrigerators and window air conditioners, where the refrigerant flow remains fixed. In addition, the Automatic Expansion Valve (AXV) maintains constant pressure in the evaporator but is less common in modern systems. Each of these expansion devices plays an important role in controlling refrigerant flow and ensuring proper cooling performance in different types of refrigeration and air-conditioning equipment.
Different between TXV and EEV

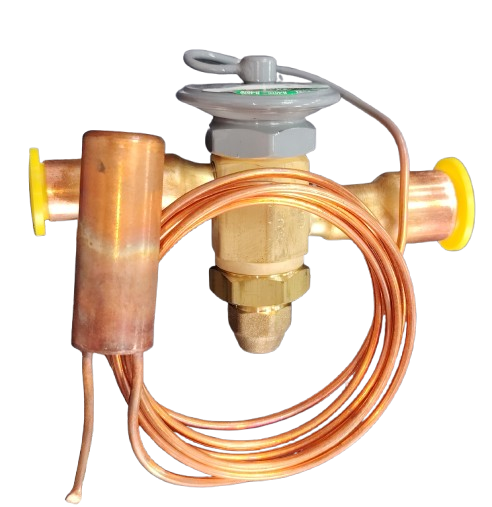

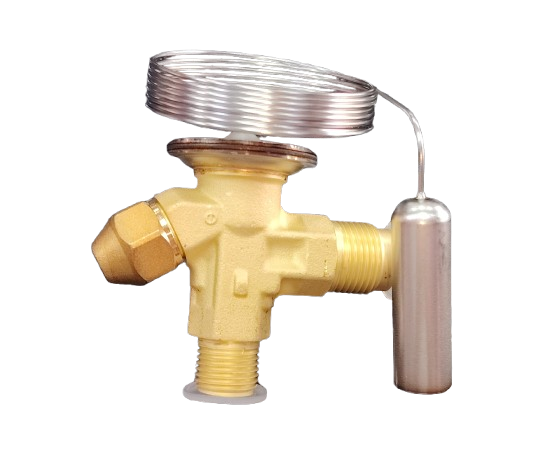

TXV (Thermostatic Expansion Valve)
The Thermostatic Expansion Valve (TXV) is a mechanical device that controls the flow of refrigerant into the evaporator based on temperature. It uses a temperature-sensitive sensing bulb attached to the evaporator outlet to detect how much refrigerant is needed. When the evaporator temperature rises, the TXV opens to allow more refrigerant in; when the temperature drops, it closes slightly to reduce flow. TXVs are simple, reliable, and widely used in residential and commercial HVAC systems because they maintain efficient cooling without complex controls.

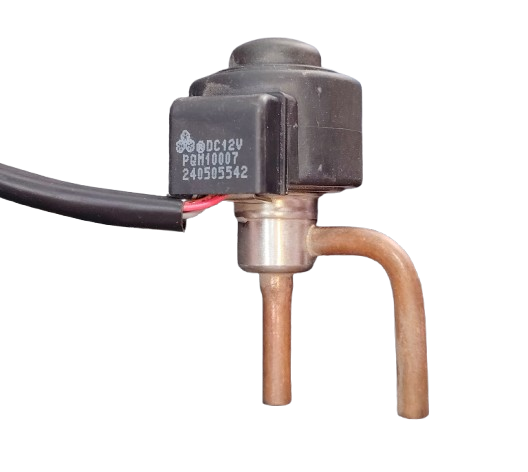

EEV (Electronic Expansion Valve)
The Electronic Expansion Valve (EEV) uses electronic sensors and a controller to monitor system conditions and adjust refrigerant flow with high precision. Unlike a TXV, an EEV can respond instantly to changing cooling demands, making it ideal for modern HVAC systems with variable loads or energy-efficient designs. EEVs offer more accurate control over evaporator superheat, improve system efficiency, and integrate easily with smart HVAC technology. While more advanced and costly than TXVs, EEVs provide superior performance and flexibility for modern cooling systems.
Working principal of an expansion valve
The working principle of an expansion valve is based on controlling the flow and pressure of refrigerant to ensure efficient cooling in a refrigeration or HVAC system. High-pressure liquid refrigerant from the condenser enters the expansion valve, where the valve reduces its pressure. This sudden drop in pressure causes the refrigerant to partially evaporate and cool down before entering the evaporator coil. Inside the evaporator, the low-pressure refrigerant absorbs heat from the surrounding air, producing the cooling effect. At the same time, the expansion valve regulates the amount of refrigerant entering the evaporator based on temperature or pressure feedback, maintaining optimal evaporator performance and preventing excess liquid refrigerant from returning to the compressor. This careful control ensures the system runs efficiently, protects key components, and delivers consistent cooling.
Roll of Expansion valve in a Refrigerant system
The expansion valve is an essential part of a refrigeration system that manages how much refrigerant flows into the evaporator. It lowers the pressure of the high-pressure refrigerant coming from the condenser, allowing it to expand and cool before it absorbs heat inside the evaporator coil. By controlling this flow, the valve ensures the system operates efficiently and prevents damage to the compressor from excess liquid refrigerant. In addition to maintaining proper cooling, the expansion valve helps stabilize temperatures, optimize energy use, and ensure the overall reliability of the refrigeration system.
F&QS
Where is an Expansion VALVE located?
The expansion valve is typically located between the condenser and the evaporator in a refrigeration or air-conditioning system. Its position allows it to control the flow of high-pressure refrigerant from the condenser before it enters the evaporator, ensuring efficient cooling and protecting the compressor from liquid refrigerant return.
What is the sign of faulty expansion valve in ac?
A faulty expansion valve in an AC can cause several noticeable problems. Common signs include uneven cooling, frost or ice buildup on the evaporator coil, strange hissing sounds, and higher energy consumption. If the valve fails to regulate refrigerant flow properly, the system may struggle to maintain the desired temperature, leading to inefficient cooling and potential damage to the compressor.
How Expansion valve control refrigerant flow?
An expansion valve plays a crucial role in an air conditioning or refrigeration system by controlling the flow of refrigerant into the evaporator. It regulates the amount of high-pressure liquid refrigerant that enters the low-pressure evaporator, ensuring the system maintains the desired cooling effect. By adjusting the flow based on temperature and pressure changes, the expansion valve prevents the evaporator from flooding with too much refrigerant or starving it with too little. This precise control improves the efficiency of the system, maintains consistent cooling, and protects components like the compressor from damage caused by irregular refrigerant flow.
