GLY12RA

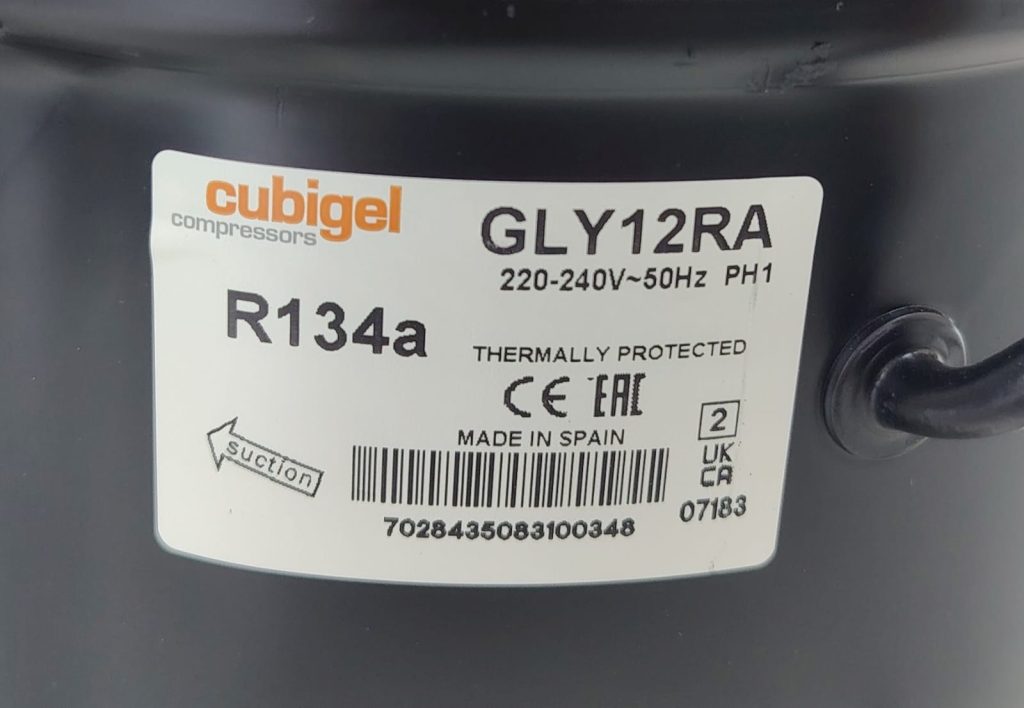

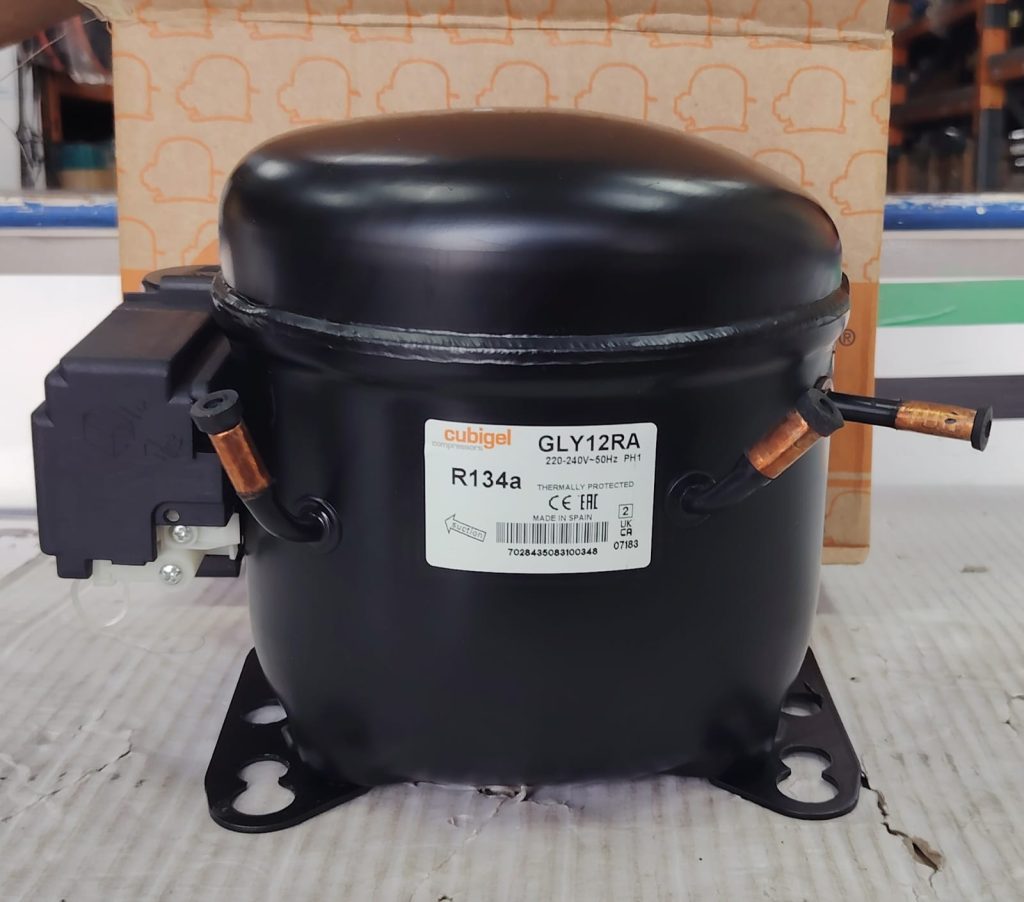

Anyone who has repaired a commercial refrigerator knows the frustration of replacing a compressor that looks identical on the outside but performs completely differently once installed. I’ve seen technicians spend hours chasing cooling problems that were actually caused by choosing the wrong compressor model rather than a refrigeration leak or electrical issue. CUBIGEL HERMATIC Compressor GLY12RA 3/8HP.
The CUBIGEL Hermetic Compressor GLY12RA 3/8HP is one of those compressors that frequently appears in beverage coolers, display refrigerators, under-counter refrigerators, and other medium-temperature refrigeration systems. It’s designed for R134a refrigerant and is built to provide dependable cooling while keeping power consumption reasonable.
If you’re considering this compressor for a replacement or a new refrigeration project, here’s everything you should know before making your decision.
Quick Specifications
| Specification | Details |
|---|---|
| Model | GLY12RA |
| Compressor Type | Hermetic Reciprocating |
| Nominal Power | 3/8 HP |
| Refrigerant | R134a |
| Compatible Refrigerant | R1234yf |
| Voltage | 220–240V |
| Frequency | 50Hz |
| Phase | Single Phase |
| Cooling Type | Fan Cooled |
| Oil Type | ISO VG 32 Ester |
| Oil Charge | 345 cc |
| Displacement | 10.7 cm³ |
| Maximum Ambient Temperature | 43°C |
| Locked Rotor Amps (LRA) | 14.8 A |
| Maximum Continuous Current | 3.6 A |
| Weight | 10.23 kg |
These specifications are taken from the manufacturer’s technical data sheet.
What Makes the GLY12RA Popular?
One reason technicians often choose this model is its balance between cooling capacity and energy efficiency.
Instead of being oversized for medium-temperature refrigeration, the GLY12RA is designed specifically for applications where steady cooling matters more than extreme low temperatures.
Its compact size also makes replacement easier in many commercial refrigerators where installation space is limited. CUBIGEL HERMATIC Compressor GLY12RA 3/8HP.
Cooling Performance
According to the manufacturer’s performance data, the compressor delivers approximately:
- Cooling Capacity: 867 Watts
- Input Power: 441 Watts
- COP: 1.97 W/W
- Operating Current: 2.51 A
These figures are measured under standard CECOMAF test conditions using R134a refrigerant.
For many commercial refrigeration applications, this level of performance provides reliable cooling without excessive electricity consumption.
Common Applications
The GLY12RA is commonly installed in:
- Commercial beverage coolers
- Display refrigerators
- Glass-door merchandisers
- Medical refrigerators
- Dairy display cabinets
- Floral refrigerators
- Under-counter refrigerators
- Convenience store coolers
- Hotel mini refrigeration systems
Because it operates on 220–240V single-phase power, it’s suitable for many commercial locations without requiring three-phase electrical service.
Refrigerant Compatibility
This compressor is primarily designed for:
- R134a
It is also listed as compatible with:
- R1234yf
Using the correct refrigerant is extremely important. Charging the system with the wrong refrigerant can reduce cooling performance, increase compressor temperature, and shorten compressor life.
Always follow the equipment manufacturer’s recommendations before servicing the system.
Electrical Characteristics
The GLY12RA uses:
- Single-phase motor
- CSIR (Capacitor Start Induction Run) design
- Starting capacitor: 47–56 μF
- Voltage range: 198–255V
These electrical specifications help provide reliable starting even when the refrigeration system operates under heavier load conditions.
Installation Tips
Proper installation is just as important as choosing the correct compressor.
A few simple practices can help prevent early compressor failure.
1. Replace the filter drier
Whenever a compressor is replaced, installing a new filter drier is considered best practice. It helps remove moisture and contaminants that could damage the new compressor.
2. Pull a proper vacuum
Skipping the evacuation process is one of the most common installation mistakes. Moisture trapped inside the refrigeration system can react with compressor oil and reduce reliability.
3. Verify electrical supply
Before powering the compressor, confirm that the voltage is within the specified operating range.
Low voltage can lead to hard starting and excessive current draw.
4. Charge the correct amount of refrigerant
Overcharging or undercharging affects cooling performance and compressor efficiency. Always charge according to the equipment manufacturer’s specifications.
5. Inspect condenser airflow
Even a high-quality compressor cannot perform well if the condenser is clogged with dust or blocked by poor airflow.
Maintenance Tips
Regular maintenance helps maximize compressor life.
Some good maintenance habits include:
- Clean condenser coils regularly.
- Check condenser fan operation.
- Inspect electrical terminals.
- Verify refrigerant pressures.
- Look for oil stains that may indicate leaks.
- Monitor compressor running current.
- Keep ventilation openings unobstructed.
Many compressor failures blamed on the compressor itself are actually caused by poor system maintenance.
Advantages
The GLY12RA offers several practical benefits:
- Reliable medium-temperature performance
- Energy-efficient operation
- Compact installation size
- Low operating current
- Single-phase electrical supply
- Suitable for many commercial refrigeration systems
- Compatible with environmentally improved refrigerants like R1234yf
- Widely available replacement model
Possible Limitations
Although it’s a versatile compressor, it isn’t suitable for every application.
Consider another model if your system requires:
- Deep-freezing temperatures
- Large walk-in freezer capacity
- High-capacity commercial refrigeration
- Different refrigerants such as R404A or R290
- Three-phase electrical systems
Selecting the correct compressor based on the system’s design is essential for long-term reliability.
Common Mistakes to Avoid
Choosing by horsepower alone
Many people assume any 3/8 HP compressor can replace another. In reality, refrigerant type, displacement, operating conditions, and electrical characteristics all need to match the original design.
Ignoring the refrigerant
The GLY12RA is designed for R134a systems. Using it in an incompatible refrigeration circuit can cause poor performance or damage.
Reusing contaminated oil
If the previous compressor failed due to burnout, simply replacing the compressor without cleaning the system can lead to another failure.
Skipping electrical checks
Loose terminals, damaged relays, or incorrect capacitors can create problems that resemble compressor failure.
Is the GLY12RA Energy Efficient?
For medium-temperature refrigeration, the compressor offers respectable efficiency. Under standard operating conditions, it achieves a coefficient of performance (COP) of approximately 1.97 W/W, balancing cooling capacity with moderate power consumption.
However, overall system efficiency also depends on factors such as:
- Condenser cleanliness
- Ambient temperature
- Refrigerant charge
- Thermostat settings
- Door opening frequency
- Cabinet insulation
A well-maintained refrigeration system will generally perform better and consume less electricity than one with neglected maintenance, regardless of the compressor installed.
Who Should Choose This Compressor?
The CUBIGEL GLY12RA is a good option for:
- Refrigeration technicians replacing an existing GLY12RA unit
- Commercial refrigerator repairs
- Beverage cooler servicing
- Medium-temperature refrigeration equipment
- OEM equipment replacement
- Restaurant refrigeration maintenance
- Supermarket display refrigerators
Before purchasing, always compare the original compressor’s specifications—including refrigerant, voltage, displacement, and application—to ensure compatibility.
Final Thoughts
The CUBIGEL Hermetic Compressor GLY12RA 3/8HP is a solid choice for medium-temperature refrigeration systems that use R134a. Its combination of single-phase operation, moderate power consumption, and reliable cooling performance makes it suitable for many commercial refrigeration applications. As with any compressor replacement, correct installation practices, proper refrigerant charging, and routine maintenance are just as important as selecting the right model. When those factors are addressed, the GLY12RA can provide dependable service and efficient operation for years.
