Capacitors, although they are small in size, are very important components providing electrical energy for many types of equipment or circuits. The use of capacitors can be found in air conditioning units, refrigerators, washing machines, and power supplies. And are used to provide starting power and run motors efficiently. When a capacitor fails, a device will cease functioning normally and may behave erratically. How to Check an AC Capacitor with a Multimeter?
This guide will help you test a capacitor safely and easily using a multimeter(s). If you are a beginner, a DIY user, or an experienced technician looking for an easy-to-follow guide without lots of technical jargon, then this guide is for you!
What Is a Capacitor and Why Is It Important?
Capacitors are electrical devices designed for storing electrical power and discharging it when it is required. In motor-driven devices, capacitors supply an extra power surge when the motor starts and ensures its smooth operation.
If the capacitor does not function correctly some issues are come, First the motor will not start. The device will overheat and most important cause is energy consumption will increase. Therefore, capacitor testing is an important step in diagnosing the problem.
Use the Resistance (Ω) mode on the multimeter
Using the Resistance (Ω) mode on a multimeter helps measure the resistance of electrical components and check whether a circuit is complete or broken. To use this mode, first turn the multimeter dial to the Ω symbol and make sure the circuit is powered off for safety. Then place the multimeter probes on both ends of the component or wire you want to test. The multimeter will display a resistance value on the screen. A low resistance reading usually indicates good continuity, while a very high or infinite reading may show that the circuit is open or the component is faulty. Technicians commonly use this mode to test resistors, wires, switches, and electrical connections during troubleshooting.
How to Using Capacitance Mode
Testing using capacitance mode on a multimeter allows you to measure the capacitance value of a capacitor and determine whether it works properly. First, turn the multimeter dial to the capacitance symbol (usually shown as –|(– or F). Before testing, discharge the capacitor to avoid damage to the meter or risk of electric shock. Then connect the multimeter probes to the capacitor terminals. The multimeter will display the capacitance value, typically in microfarads (µF) or nanofarads (nF). If the reading closely matches the capacitor’s rated value, the component is likely in good condition. A very low, unstable, or zero reading may indicate that the capacitor is faulty or damaged.
Testing Wire of MULTIMETER

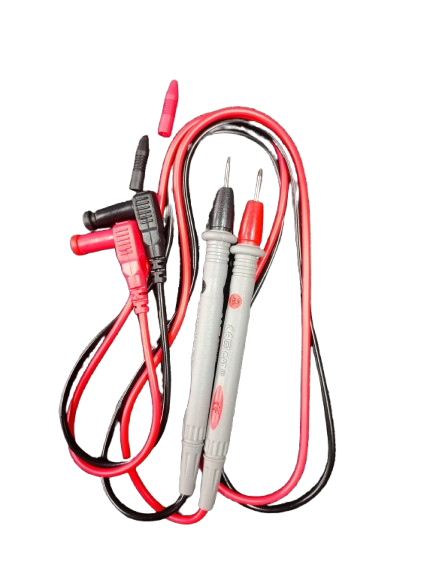

A multimeter wire, also known as test leads, connects a multimeter to an electrical circuit for measuring voltage, current, and resistance. These wires usually include insulated cables with metal probes at one end and connectors that plug into the multimeter at the other end. The insulation protects the user from electric shock and ensures safe testing of electrical components. Multimeter wires come in different lengths and quality levels, depending on the type of testing required. Technicians commonly use them in electrical repair, electronics work, and troubleshooting to check circuits, batteries, and electrical devices accurately and safely.
Common Symptoms of a Faulty Capacitor
It is always important to be aware of some of the common symptoms associated with a faulty capacitor before making use of a multimeter. Some of the most common symptoms associated with a faulty capacitor are as follows:
- Appliance is not starting
- Motor is humming
- Air conditioner is tripping frequently
- Fan is running slowly or not at all
- Compressor is overheating
- The capacitor is swollen or leaking
Learn about Multimeter
A multimeter is an electrical measuring device that is used to measure different parameters associated with an electrical circuit. The parameters that a multimeter is able to measure include voltage, current, and resistance. It is able to aid in detecting faults associated with electrical devices and circuits. It is a crucial device that is used by different individuals, including technicians and electricians. A modern multimeter is known as a digital multimeter. A digital multimeter is able to provide precise measurement results on a digital screen. Additionally, is able to provide measurement results associated with capacitance, frequency, and temperature. A multimeter has two different probes that are usually colored red and black.
FAQS
How to tell if a capacitor is shorted in a circuit ?
if a capacitor is shorted in a circuit by observing both the system behavior and multimeter readings. A shorted capacitor will often result in blown fuses, a tripped circuit breaker, or the inability of the device to turn on. To check, first turn off the power to the circuit, discharge the capacitor safely, and set your multimeter to the resistance setting. When you test a capacitor by placing the probes on the terminals, a shorted capacitor will read a constant zero or low resistance value that will not rise to infinity. Normally, the resistance value will momentarily increase as the capacitor charges.
How long do a ac capacitor last ?
On average, the life of an AC capacitor can vary from 8 to 15 years, depending on various factors such as usage, operating conditions, and quality of the capacitor. Under normal circumstances of residential air-conditioning systems, the average life of most run capacitors can be estimated to be around 10 years. However, if there are situations of high heat, power fluctuations, or improper ventilation, the life of a capacitor can be as low as 5 to 7 years. Nevertheless, it is recommended that if a capacitor starts showing signs of weakening, it is best to change it rather than relying on any other solution.
what causes an ac capacitor is failed ?
A typical reason for the failure of an AC capacitor is its exposure to heat, aging, and electrical stress. High temperatures, power surges, voltage fluctuations, frequent system cycling, and low-quality components can cause the capacitor to overheat and fail.
How many volt should an ac capacitor is read ?
The AC capacitor should show a voltage close to its rating. The capacitor’s rating should be close to 370 or 440 volts for most air-conditioning units. The voltage during operation should not be greater than the capacitor’s rating. The capacitance should be within its tolerance rating.
What are the sign of bad capacitor ?
Faulty capacitor symptoms include failure to start equipment, humming and buzzing sounds, weak and slow fan and motor movement, frequent tripping, overheating, and swollen capacitor body.
