A few summers ago, I got a service call from a customer whose 2-ton split air conditioner had suddenly stopped cooling. The indoor unit was running perfectly, but the outdoor unit made a loud humming noise before shutting off. Like many homeowners, they immediately thought the refrigerant had leaked. After checking the system with my manifold gauge set, clamp meter, and multimeter, I discovered the real problem—the compressor had failed internally.
The replacement compressor we installed was the LG QVS325PMA R22 1PH, and it turned out to be an excellent fit for the existing system. Since then, I’ve worked with this compressor several times, especially in older residential air conditioners that still operate on R22 refrigerant.
If you’re researching this model before purchasing or replacing your existing compressor, this guide covers everything you should know—from specifications and performance to installation tips and common troubleshooting.

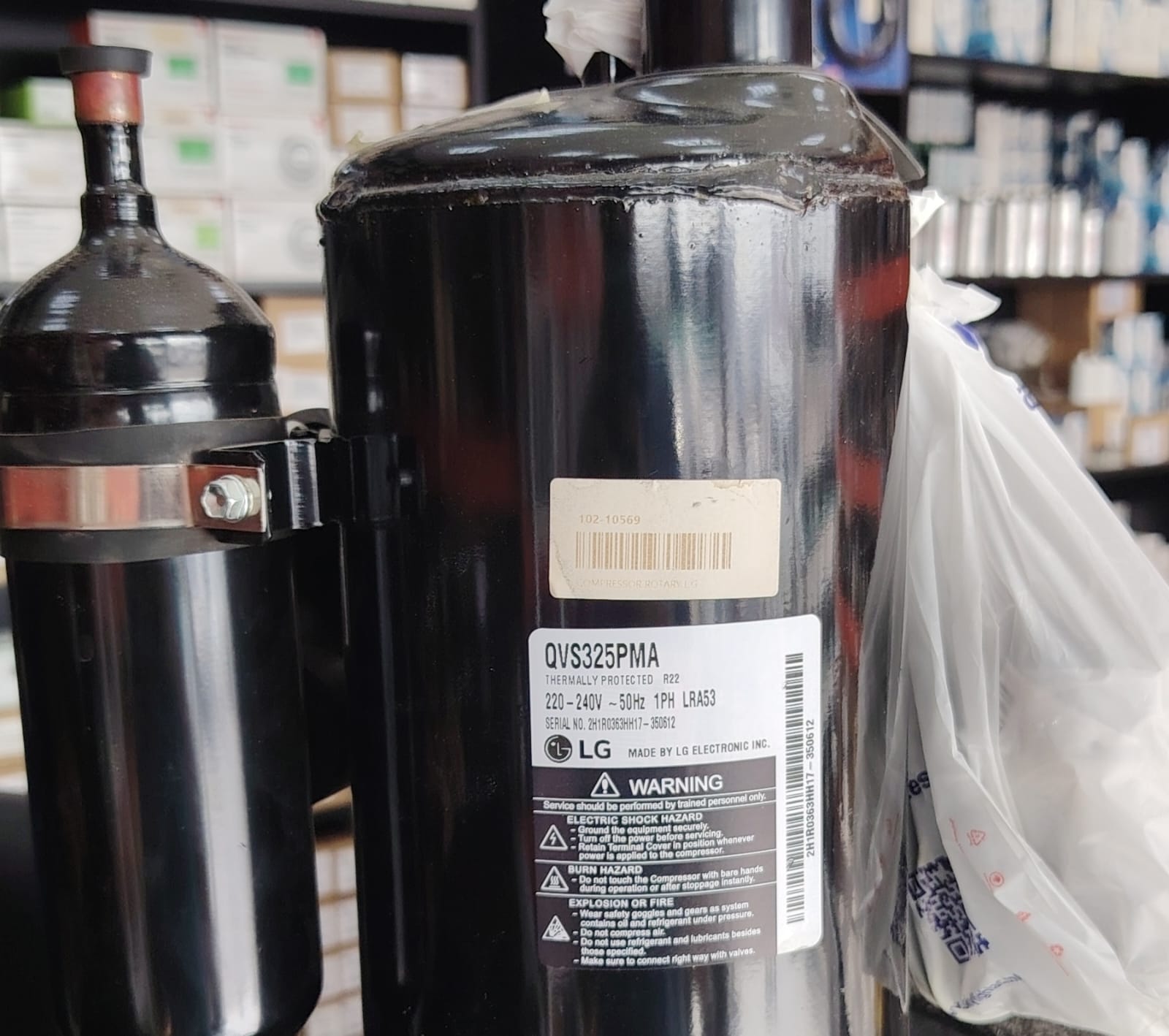

What Is the LG QVS325PMA R22 1PH Compressor?
The LG QVS325PMA is a rotary compressor designed for approximately 2-ton residential air conditioning systems using R22 refrigerant. It operates on a single-phase electrical supply, making it suitable for homes, apartments, offices, and small commercial spaces.
Although R22 equipment is gradually being phased out in many countries, thousands of systems are still operating successfully. When the original compressor fails, replacing it with a compatible model often costs much less than installing an entirely new air conditioner.
One thing I appreciate about this compressor is how smoothly it starts compared to some older rotary models. After installation, vibration levels are generally low when the mounting rubber is in good condition.
LG QVS325PMA Technical Specifications
| Specification | Details |
|---|---|
| Brand | LG |
| Model | QVS325PMA |
| Compressor Type | Rotary Compressor |
| Cooling Capacity | Approximately 2 Ton |
| Refrigerant | R22 |
| Power Supply | 1 Phase |
| Frequency | 50 Hz (varies by region) |
| Application | Split Air Conditioner |
| Lubrication | Compressor Oil (Factory Filled) |
| Installation | Outdoor Condensing Unit |
Always verify the nameplate specifications before installation because production variations may exist.
Key Features
Reliable Rotary Design
Rotary compressors are known for producing steady cooling with fewer moving parts than traditional reciprocating compressors. In practical use, they usually generate less vibration and lower operating noise.
Suitable for Residential Cooling
This compressor is commonly installed in:
- Homes
- Villas
- Apartments
- Offices
- Retail shops
- Small commercial spaces
Smooth Operation
After proper installation and evacuation, the compressor starts quietly and reaches operating pressure quickly.
Good Cooling Performance
When paired with a clean condenser coil and correct refrigerant charge, cooling performance is excellent even during hot summer afternoons.
Compact Construction
The compressor’s compact size makes installation easier inside many outdoor units.
Where Is the LG QVS325PMA Commonly Used?
I’ve mostly seen this compressor installed in:
- 2-ton split air conditioners
- Residential cooling systems
- Commercial offices
- Clinics
- Schools
- Small restaurants
- Retail stores
Many technicians also use it as a replacement when the original compressor has become unavailable.
Signs Your Compressor May Need Replacement
Before replacing any compressor, it’s important to confirm the diagnosis. I’ve seen perfectly good compressors replaced because the real issue was a faulty capacitor or contactor.
Common warning signs include:
Poor Cooling
The air conditioner runs continuously but never reaches the desired temperature.
Loud Humming
The outdoor unit hums loudly but fails to start.
Circuit Breaker Trips
A compressor with internal winding damage often causes repeated breaker trips.
Locked Rotor
The compressor attempts to start but immediately shuts down.
High Current Draw
Using a clamp meter, you’ll notice current far above the rated value.
Internal Short Circuit
Resistance testing between terminals may reveal winding damage.
Tools I Normally Use During Diagnosis
Whenever I inspect a compressor like the LG QVS325PMA, I keep these tools nearby:
- Digital multimeter
- Clamp meter
- Refrigerant manifold gauge
- Vacuum pump
- Refrigerant recovery machine
- Nitrogen cylinder
- Leak detector
- Brazing torch
- Digital thermometer
Having the right tools often saves hours of unnecessary troubleshooting.
Step-by-Step Replacement Process
Replacing a compressor isn’t just about swapping parts. Every step matters if you want long-term reliability.
Step 1: Confirm Compressor Failure
Check:
- Voltage supply
- Capacitor
- Contactor
- Overload protector
- Compressor winding resistance
Never replace the compressor without verifying these components first.
Step 2: Recover Refrigerant
Recover the existing R22 refrigerant using approved recovery equipment.
Never vent refrigerant into the atmosphere.
Step 3: Remove the Old Compressor
Disconnect:
- Suction line
- Discharge line
- Electrical terminals
- Mounting bolts
Lift the compressor carefully to avoid damaging nearby tubing.
Step 4: Install the New Compressor
Install fresh rubber mounts if possible.
Reconnect the piping using proper brazing techniques.
Replace the filter drier during every compressor replacement.
Step 5: Pressure Test
Charge the system with dry nitrogen.
Check every brazed joint for leaks.
This simple step prevents expensive callbacks later.
Step 6: Pull a Deep Vacuum
Use a quality vacuum pump until the system reaches an acceptable vacuum level.
Moisture left inside the system can significantly reduce compressor life.
Step 7: Recharge Refrigerant
Charge the system with the correct amount of R22 refrigerant according to the manufacturer’s specifications.
Avoid guessing the charge.
Step 8: Test the System
Monitor:
- Suction pressure
- Discharge pressure
- Compressor current
- Supply voltage
- Air outlet temperature
Allow the system to run for at least 20–30 minutes before completing the job.
Performance in Daily Use
After replacing several failed compressors with the LG QVS325PMA, I’ve noticed a few consistent characteristics.
The startup is generally smooth, provided the capacitor is healthy.
Noise levels remain relatively low.
Cooling becomes stable once the refrigerant charge is correctly adjusted.
Power consumption stays within expected limits for a 2-ton air conditioner.
Most importantly, customer complaints usually disappear after proper installation.
Common Installation Mistakes
I’ve made a few of these mistakes early in my career, and they taught me valuable lessons.
Skipping the Vacuum Process
This is one of the biggest mistakes.
Air and moisture inside the refrigeration system can lead to acid formation and compressor failure.
Reusing the Old Filter Drier
It might save a few dollars today but can shorten compressor life significantly.
Always replace it.
Overcharging Refrigerant
Adding “a little extra” refrigerant rarely improves cooling.
Instead, it often increases discharge pressure and compressor load.
Ignoring Dirty Condenser Coils
Even a brand-new compressor can’t perform properly if airflow is restricted.
Clean the condenser before finishing the installation.
Using Incorrect Capacitor Ratings
Always install the capacitor specified by the manufacturer.
The wrong value can cause starting problems and overheating.
Maintenance Tips for Longer Compressor Life
Routine maintenance goes a long way toward extending compressor life.
I usually recommend:
- Clean condenser coils every few months.
- Replace dirty air filters regularly.
- Check refrigerant levels during servicing.
- Inspect electrical terminals for loose connections.
- Measure compressor current annually.
- Keep the outdoor unit free from leaves and debris.
- Ensure proper airflow around the condenser.
Simple maintenance often prevents expensive repairs.
Is the LG QVS325PMA Still Worth Buying?
If your existing air conditioner still uses R22 refrigerant and is otherwise in good condition, replacing the failed compressor can be a practical solution.
However, consider the overall age of the system. If the condenser coil, evaporator coil, or other major components are also nearing the end of their service life, investing in a newer R32 or R410A system may provide better long-term value.
For systems that are structurally sound, the LG QVS325PMA remains a dependable replacement option when installed correctly.
Frequently Asked Questions
Is the LG QVS325PMA suitable for residential air conditioners?
Yes. It is commonly used in residential split air conditioners with approximately 2-ton cooling capacity.
Which refrigerant does it use?
This compressor is designed specifically for R22 refrigerant.
Does it require a three-phase power supply?
No. The 1PH designation means it operates on a single-phase electrical supply.
Can I replace the compressor myself?
Compressor replacement requires specialized tools, refrigerant handling equipment, and brazing skills. For safety and proper system performance, it’s best carried out by a qualified HVAC technician.
How long can this compressor last?
With correct installation and regular maintenance, compressors like the LG QVS325PMA often provide many years of reliable service. Factors such as electrical stability, refrigerant charge, cleanliness of the condenser, and overall system condition have a significant impact on lifespan.
Final Thoughts
The LG 2Ton Compressor QVS325PMA R22 1PH has proven to be a dependable replacement for many older R22 split air conditioning systems. From my experience, the compressor performs well when paired with proper installation practices, accurate refrigerant charging, and routine maintenance.
The biggest lesson I’ve learned over the years is that even the best compressor won’t last if shortcuts are taken during installation. Taking the time to replace the filter drier, pull a deep vacuum, verify electrical components, and charge the system correctly makes a noticeable difference in long-term reliability. If your existing R22 air conditioner is still in good condition, this compressor can be a practical way to restore efficient cooling without replacing the entire system.
