When it comes to reliable air conditioning and commercial cooling performance, the Copeland ZR94KCE-TFD-550 scroll compressor stands out as a trusted solution. Designed for high efficiency and long service life, this model is widely used in commercial HVAC systems, rooftop units, and packaged air conditioning equipment. If you are an HVAC technician, contractor, or equipment supplier, understanding the features and performance of the ZR94KCE-TFD-550 can help you choose the right compressor for demanding applications. COPELAND Scroll Compressor ZR94KCE-TFD-550.

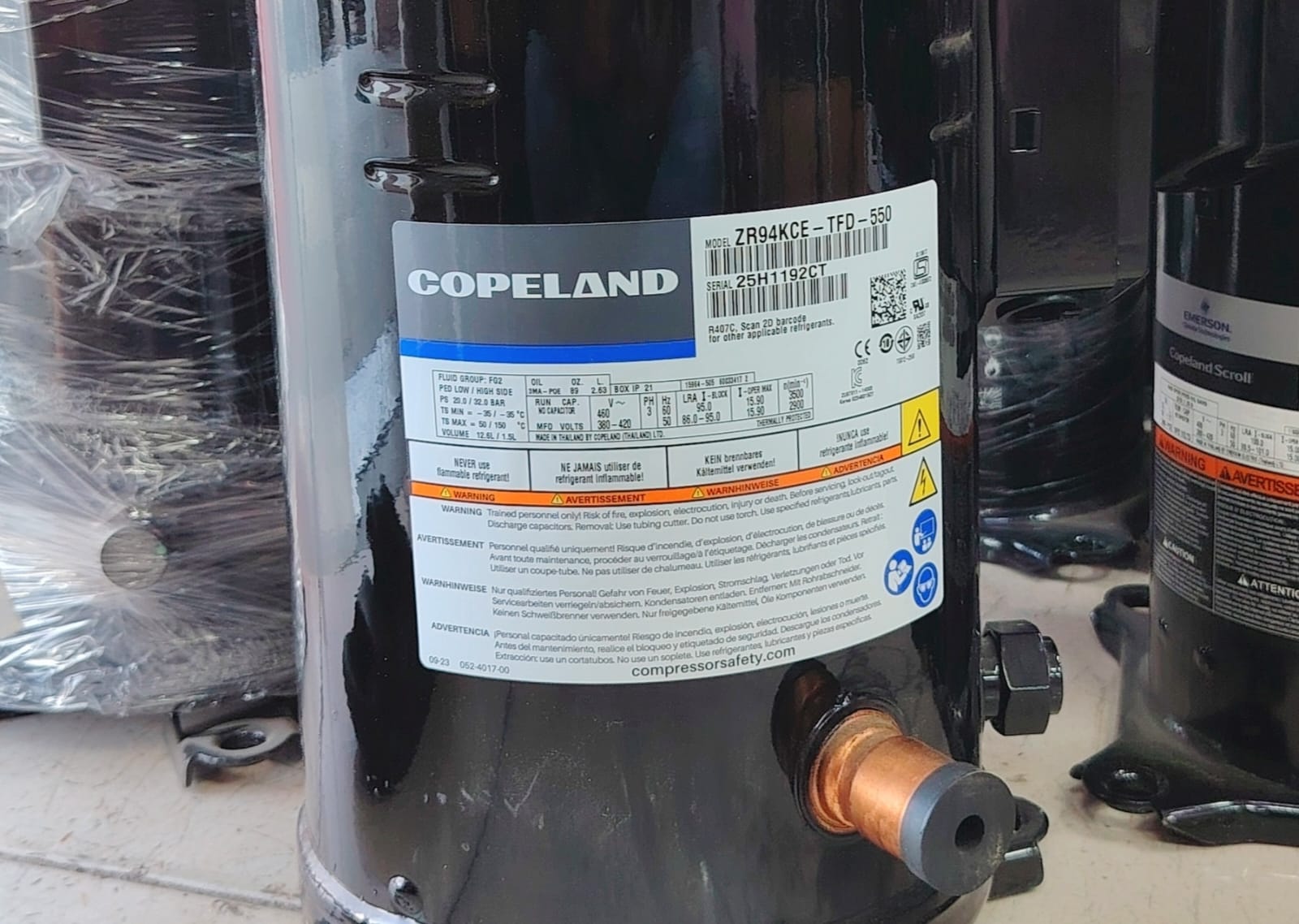

ZR94KCE-TFD-550 3 phase compressor
The Copeland ZR94KCE‑TFD‑550 Scroll Compressor is a three-phase scroll compressor designed primarily for air-conditioning applications. In particular, it operates with R407C Refrigerant and other compatible refrigerants depending on the system design. As a result, it delivers powerful and consistent cooling performance in demanding HVAC systems. Moreover, this compressor belongs to the well-known Copeland ZR Series. Therefore, many HVAC professionals recognize it for its durability, smooth operation, and strong energy efficiency in commercial and industrial cooling applications.
Specifications of ZR94KCE-TFD-550
The Copeland ZR94KCE-TFD-550 Scroll Compressor is a three-phase scroll compressor designed primarily for commercial air-conditioning applications. In particular, it operates with R407C Refrigerant, although technicians should always verify system compatibility before installation. As a result, the compressor delivers strong and consistent cooling performance in demanding HVAC systems. Moreover, this unit runs on three-phase power with a voltage range of 380–420V and a frequency of 50 Hz. Therefore, it provides reliable operation in many industrial and commercial environments where these electrical standards are common.
In addition, the compressor offers a cooling capacity of approximately 7.5 to 8 tons, depending on operating conditions. Because of this, it suits medium to large HVAC systems such as commercial buildings, packaged air-conditioning units, and ducted cooling systems. Furthermore, the compressor belongs to the well-known Copeland ZR Series. Consequently, HVAC professionals recognize it for durability, smooth operation, and high energy efficiency. Overall, its robust design and dependable performance make the ZR94KCE-TFD-550 a reliable choice for maintaining stable climate control in commercial environments.
Why Scroll Technology Matters
Scroll compressors, like the ZR94KCE-TFD-550, operate differently from traditional reciprocating compressors. They use two spiral-shaped scrolls to compress the refrigerant—one scroll stays stationary while the other moves in a circular motion. This innovative design offers several advantages. The compressor runs more quietly, generates less vibration, and operates more efficiently, helping to reduce energy consumption. Additionally, the reduced mechanical wear extends the compressor’s lifespan. Thanks to these features, the ZR94KCE-TFD-550 provides smooth, reliable performance even under heavy load conditions, making it an excellent choice for demanding commercial HVAC applications.
Performance & Efficiency
Energy efficiency is one of the strongest advantages of this model. The advanced scroll design minimizes internal leakage and optimizes compression. Consequently, the compressor maintains stable cooling capacity while reducing power consumption. In commercial environments where systems run for long hours, this efficiency helps lower electricity costs significantly. Moreover, the ZR94KCE-TFD-550 handles high ambient temperatures effectively, which makes it suitable for hot climate regions. ZR94KCE-TFD-550 DATA SHEET
SCROLL ZR94KCE-TFD-550
| COMPANY | COPELAND |
| FULL MODEL | ZR94KCE-TFD-550 |
| REFRIGERANT | R22 ,R134A & R407C |
| VOLTAGE | 380 – 420V |
| FREQUENCY | 50/60HZ |
| PHASE | 3 PHASE |
| BTU | 78600 TO 94500 |
| HORSE POWER | 7.8 HP |
| COMPRESSOR TYPE | SCROLL |
| LRA | 86 TO 95 |
| WEIGHT | 58 KG |
| SECTION SIZE | 1 1/8 INCH |
| DISCHARGE SIZE | 7/8 INCH |
| POWER WATT | 6950 TO 4720 |
| ORIGIN | THAILAND |
Installation & Maintenance process for Technicians
Proper installation is crucial for maximizing the lifespan of the Copeland ZR94KCE-TFD-550 Scroll Compressor. Specifically, technicians should ensure correct refrigerant charging, maintain proper oil levels, confirm the correct three-phase voltage supply, size suction and discharge lines appropriately, and use recommended electrical protection devices. When these steps are followed, the compressor can deliver many years of reliable, trouble-free service.
Equally important, regular maintenance helps prolong the compressor’s performance. For example, technicians should inspect electrical connections, monitor operating pressures, check superheat and subcooling, keep condenser coils clean, and replace filters and driers as needed. By performing routine preventive maintenance, operators can prevent major breakdowns and protect the compressor from damage. Consequently, these practices ensure efficient, durable, and long-lasting operation over time.
