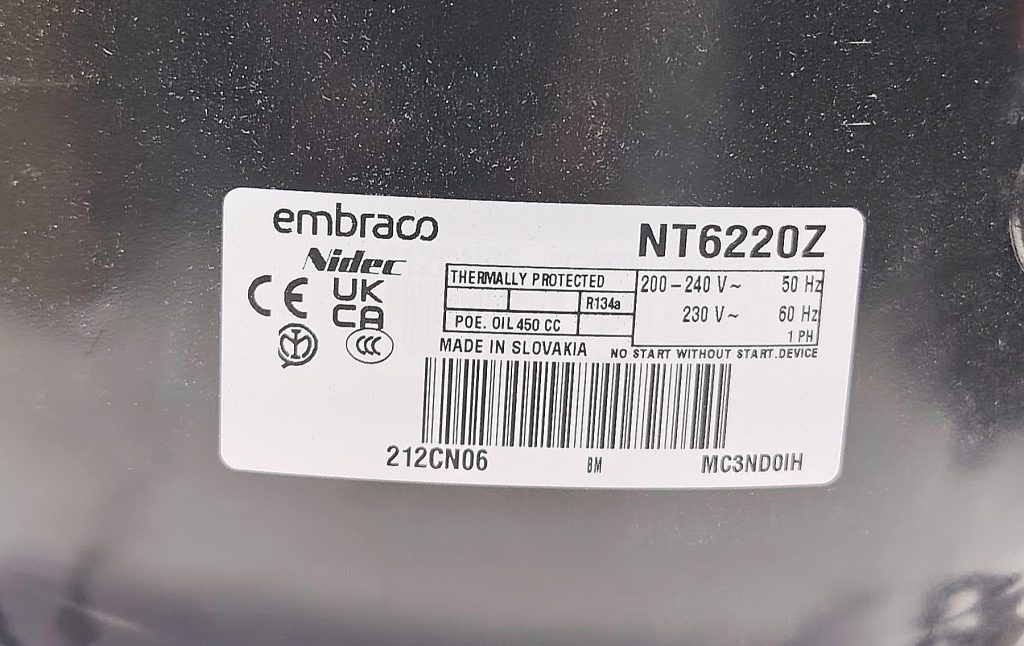

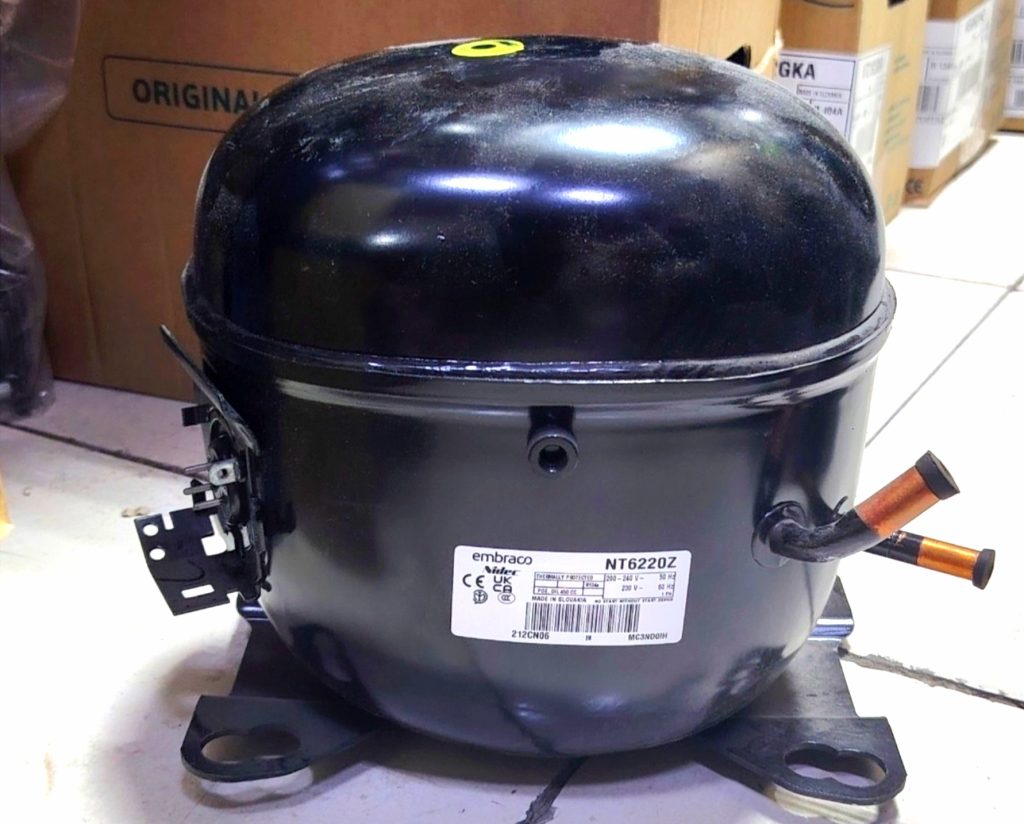

If you’ve ever opened a commercial refrigerator on a hot afternoon only to find warm drinks instead of cold ones, you know how frustrating compressor problems can be. I remember replacing an older compressor in a reach-in beverage cooler that struggled to maintain temperature during peak business hours. After checking the refrigeration system, confirming there were no leaks, and installing the EMBRACO NT6220Z, the difference was noticeable within a few hours. The cabinet pulled down to temperature faster, the compressor ran smoothly, and the customer stopped complaining about warm products. EMBRACO Compressor NT6220Z 5/8hp R134a.
That experience is why I still recommend the EMBRACO NT6220Z for medium and high back pressure (MBP/HBP) refrigeration applications. It isn’t the biggest compressor on the market, but when it’s installed correctly and paired with the right refrigeration system, it performs reliably for years.
In this guide, I’ll explain what makes this compressor popular, where it works best, common mistakes installers make, and a few lessons I’ve learned after working with similar Embraco units.
What Is the EMBRACO NT6220Z?
The EMBRACO NT6220Z is a hermetic reciprocating compressor designed for R134a refrigerant in medium- and high-back-pressure refrigeration systems. It is commonly used in commercial refrigeration equipment where dependable cooling and steady performance are essential.
Although many people refer to it as a 5/8 HP compressor, manufacturer documentation lists it as approximately 1 HP, which reflects its application rating rather than a simple horsepower comparison. Always match the compressor to the original system specifications instead of relying only on the horsepower label.
It operates on:
- Refrigerant: R134a
- Voltage: 208–230V
- Phase: Single Phase
- Compressor Type: Hermetic Reciprocating
- Motor Type: CSIR (Capacitor Start, Induction Run)
- Operating Speed: 3500 RPM
- Oil Type: POE ISO22
Technical Specifications
Here are the important specifications you’ll usually need before installation.
| Specification | Value |
|---|---|
| Model | EMBRACO NT6220Z |
| Refrigerant | R134a |
| Voltage | 208–230V |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Compressor Type | Hermetic Reciprocating |
| Displacement | 20.44 cc |
| Speed | 3500 RPM |
| Oil Charge | 450 ml |
| Oil Type | POE ISO22 |
| Locked Rotor Current | 33.7 A |
| Full Load Amps | 8.5 A |
| Cooling Method | Forced-air cooling (minimum 6 W fan) |
Where Is the NT6220Z Commonly Used?
One thing I appreciate about this compressor is its versatility. I’ve seen it installed in several commercial refrigeration applications, including:
- Reach-in refrigerators
- Beverage coolers
- Beer coolers
- Ice machines
- Drinking water coolers
- Dehumidifiers
These systems don’t require extremely low evaporating temperatures, making the NT6220Z a practical choice for everyday refrigeration.
Why Many Technicians Like This Compressor
After replacing several compressors over the years, you begin to notice patterns. Some models are noisy, some run hotter than expected, while others seem to last much longer with proper maintenance.
The NT6220Z has several strengths.
Reliable Cooling Performance
One of the biggest advantages is stable cooling capacity. Once the refrigeration system is properly evacuated and charged, cabinet temperatures remain consistent.
Quiet Operation
Compared with many older reciprocating compressors, vibration levels are relatively low. Proper rubber mounting grommets help reduce vibration even further.
Good Efficiency
R134a systems are generally efficient when operating within their intended temperature range. This compressor performs well without excessive power consumption when the condenser is clean and airflow is unrestricted.
Widely Available Parts
Finding replacement relays, overload protectors, and start capacitors is generally straightforward, making future servicing much easier.
Installation Tips That Actually Matter
I’ve seen perfectly good compressors fail simply because installers rushed the job.
Here are the steps I always follow.
1. Inspect the Entire Refrigeration System
Never assume the compressor is the only problem.
Check for:
- Refrigerant leaks
- Burned wiring
- Dirty condenser
- Blocked capillary tube
- Faulty fan motors
Sometimes the compressor gets blamed for another system fault.
2. Replace the Filter Drier
This isn’t optional.
Whenever a refrigeration system is opened, moisture enters the piping.
A new filter drier helps remove:
- Moisture
- Acid
- Small contaminants
Skipping this step can shorten compressor life dramatically.
3. Pull a Deep Vacuum
One shortcut I never recommend is skipping the evacuation process.
Use a quality vacuum pump and micron gauge.
Moisture trapped inside the system eventually turns into acid, damaging the compressor windings.
4. Charge the Correct Refrigerant
The NT6220Z is designed specifically for R134a.
Never substitute another refrigerant unless the system has been professionally redesigned.
5. Verify Electrical Components
According to the manufacturer, this compressor uses:
- Start capacitor: 88–108 µF
- Overload protector
- Start relay specified for this model
Using incorrect electrical components may affect starting performance and can void the warranty.
Real-World Performance
One installation stands out because the customer had already replaced two compressors in less than three years.
The real problem wasn’t the compressor.
The condenser coil was completely blocked with dust and grease, causing extremely high discharge pressure.
After cleaning the condenser, replacing the filter drier, installing the NT6220Z, and charging the correct amount of refrigerant, the unit ran without issues.
That experience reinforced something every refrigeration technician eventually learns:
A compressor is only as healthy as the system it’s installed in.
Common Mistakes to Avoid
These mistakes appear more often than you’d expect.
Charging Without a Scale
Guessing the refrigerant charge rarely ends well.
Too much refrigerant increases head pressure.
Too little reduces cooling capacity.
Always charge according to the equipment manufacturer’s specifications.
Reusing Old Electrical Parts
Old relays and capacitors sometimes appear to work, but weak components often cause difficult starting and repeated overload trips.
Replacing them during compressor installation saves future headaches.
Ignoring Airflow
Even an excellent compressor struggles if the condenser cannot reject heat.
Keep condenser fins clean and verify condenser fan operation.
Mixing Refrigerants
Never mix R134a with another refrigerant.
Besides reducing performance, it creates major servicing problems later.
Skipping Oil Considerations
The NT6220Z uses POE ISO22 oil, which absorbs moisture quickly. Avoid leaving the refrigeration system open longer than necessary during repairs.
Maintenance Tips for Longer Compressor Life
Routine maintenance doesn’t take much time but pays off over the long run.
Here’s what I usually recommend.
- Clean condenser coils every few months.
- Inspect fan motors regularly.
- Check operating pressures.
- Look for refrigerant leaks.
- Listen for unusual compressor sounds.
- Inspect wiring connections.
- Replace damaged insulation.
- Keep ventilation openings unobstructed.
These simple habits often prevent expensive compressor replacements.
Is the NT6220Z Energy Efficient?
For commercial refrigeration systems using R134a, the NT6220Z offers solid efficiency when operating within its intended medium- and high-temperature range.
Of course, compressor efficiency also depends on:
- Ambient temperature
- Condenser cleanliness
- Refrigerant charge
- Cabinet insulation
- Door gasket condition
Even the best compressor cannot overcome poor system maintenance.
Who Should Choose the EMBRACO NT6220Z?
This compressor is a good choice if you’re replacing an original NT6220Z or another compatible compressor in equipment designed for R134a and 208–230V single-phase operation.
It’s especially well suited for:
- Restaurant refrigeration
- Grocery display refrigerators
- Beverage coolers
- Commercial kitchens
- Convenience stores
- Ice machine applications
Before ordering, always compare the original compressor’s refrigerant, voltage, displacement, and application with the replacement to ensure compatibility.
Frequently Asked Questions
Is the EMBRACO NT6220Z compatible with R404A?
No. It is designed specifically for R134a refrigerant.
Does it require a start capacitor?
Yes. The recommended start capacitor is 88–108 µF at 330V.
Can it be used in household refrigerators?
Generally, no. It is intended for commercial medium- and high-back-pressure refrigeration equipment.
What cooling applications is it designed for?
Typical applications include reach-in refrigerators, beer coolers, water coolers, dehumidifiers, and ice machines.
Final Thoughts
The EMBRACO NT6220Z has earned a solid reputation because it does exactly what a commercial refrigeration compressor should do: provide dependable, consistent cooling when installed in the right system. From my experience, most failures blamed on the compressor actually trace back to issues like poor airflow, incorrect refrigerant charging, or neglected maintenance.
If you’re replacing an existing unit, take the time to inspect the entire refrigeration system, replace the filter drier, use the correct electrical components, and charge the system accurately. Those extra steps may add a little time to the job, but they often make the difference between a compressor that lasts for years and one that fails prematurely.
