A few summers ago, I received a call from a restaurant owner who was worried about his beverage cooler. Customers were complaining that drinks weren’t cold enough, and the unit seemed to run almost continuously without reaching the desired temperature. At first glance, everything looked normal. The condenser fan was working, the thermostat responded correctly, and there were no obvious refrigerant leaks. Danfoss Hermetic Compressor SC12CL 3/8HP 220-240V.
After a closer inspection, the problem became clear. The compressor had been operating for years and was no longer delivering the performance needed to maintain proper cooling. We replaced it with a Danfoss SC12CL 3/8HP Hermetic Compressor, and within hours the difference was noticeable. The cooler recovered temperature faster, cycle times became normal again, and the owner immediately noticed improved performance.
That experience isn’t unique. Over the years, I’ve worked with many refrigeration compressors, and the Danfoss SC12CL has consistently proven itself as a reliable option for commercial refrigeration systems where dependable cooling is essential.
If you’re considering the Danfoss SC12CL for a replacement project or simply want to understand how it performs in real-world applications, this guide covers everything you need to know.
Understanding the Danfoss SC12CL Compressor

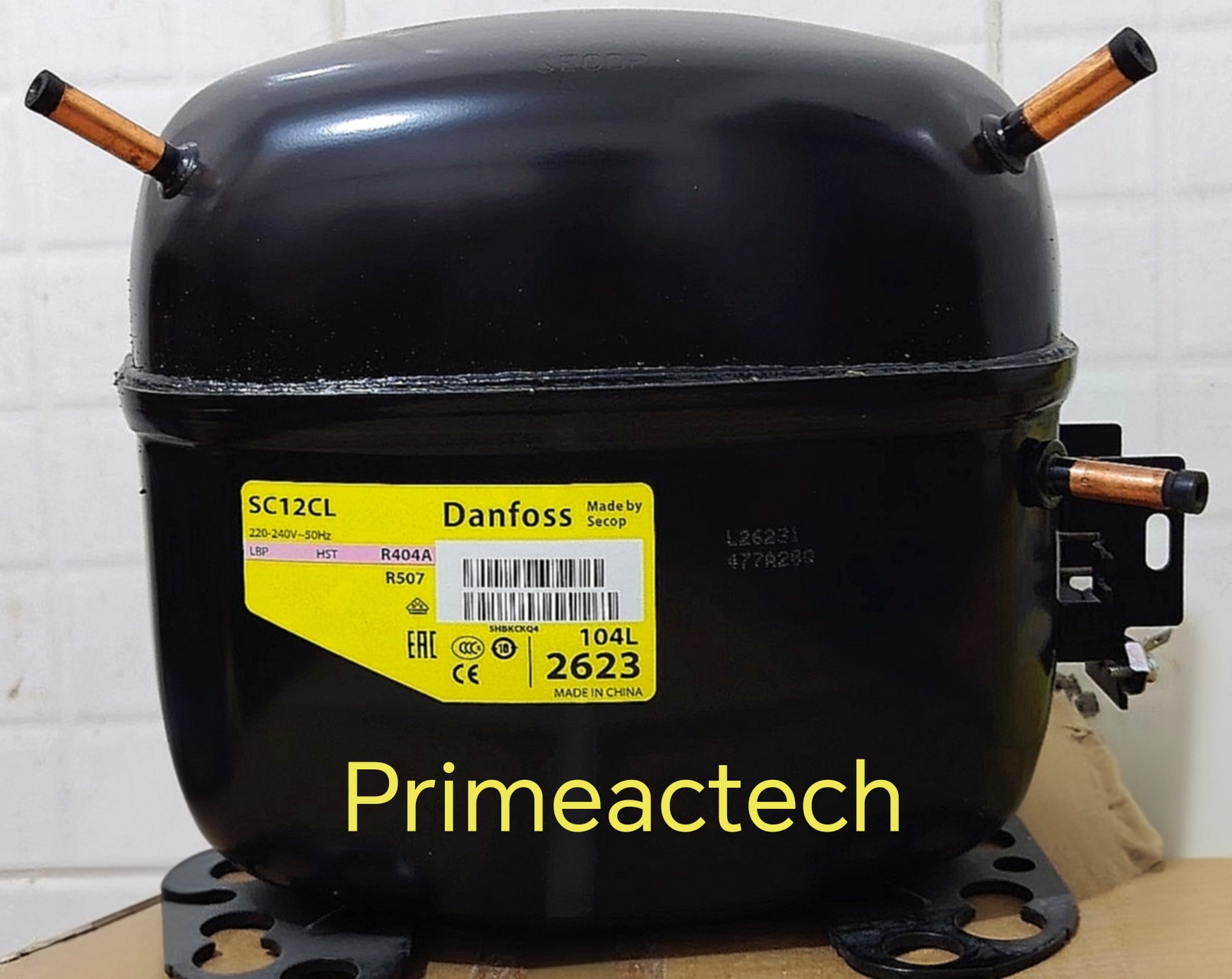

The Danfoss SC12CL is a hermetic reciprocating compressor designed for refrigeration systems operating on a 220-240V power supply. It belongs to the well-known Danfoss SC series, which has earned a strong reputation among refrigeration technicians for durability and dependable operation.
The term “hermetic” means the motor and compression mechanism are sealed inside a welded steel shell. This design protects internal components from contamination while reducing maintenance requirements.
Unlike some budget compressors that may struggle during continuous operation, the SC12CL is built to handle demanding refrigeration applications where stable temperatures are critical.
Its 3/8 horsepower rating places it in a versatile category suitable for both commercial and light industrial refrigeration equipment.
Why the SC12CL Remains Popular Among Technicians
Whenever technicians gather to discuss reliable refrigeration compressors, certain model numbers repeatedly enter the conversation.
The SC12CL is one of them.
After servicing refrigeration equipment for many years, several reasons explain why.
Consistent Cooling Performance
One thing I’ve learned in refrigeration work is that peak performance on day one means very little if the compressor cannot maintain that performance over time.
The SC12CL delivers stable cooling capacity across a wide range of operating conditions.
This becomes especially important in applications such as:
- Commercial refrigerators
- Beverage coolers
- Reach-in chillers
- Food storage cabinets
- Small cold rooms
- Refrigerated display units
Stable cooling means fewer temperature fluctuations and better product preservation.
| COMPANY | DANFOSS SECOPE |
| MODEL | SC12CL |
| VOLTAGE | 220-240V |
| FREQUENCY | 50HZ |
| TYPE | HERMATIC |
| POWER | 3/8HP |
| APPLICATION | LOW BACK COMPRESSOR |
Reliable Starting Characteristics
Starting problems are among the most common refrigeration complaints.
Symptoms often include:
- Clicking noises
- Compressor overheating
- Repeated shutdowns
- Tripped overload protectors
The Danfoss SC12CL generally provides strong starting performance when paired with the proper starting components and electrical supply.
For equipment that cycles frequently throughout the day, dependable startup behavior is extremely valuable.
Durable Construction
Many refrigeration systems operate around the clock.
Unlike residential appliances that may cycle periodically, commercial refrigeration equipment often runs continuously for long periods.
The SC12CL was designed with durability in mind.
Its rugged construction helps withstand:
- Frequent cycling
- Extended operating hours
- Variable ambient conditions
- Heavy refrigeration workloads
This durability often translates into lower maintenance costs over time.
Low Noise and Vibration
Restaurant owners, shop managers, and facility operators frequently notice excessive compressor noise before they notice anything else.
The SC12CL generally operates smoothly when installed correctly.
Proper mounting and vibration isolation can significantly reduce:
- Cabinet vibration
- Pipe movement
- Noise transmission
This creates a more comfortable environment for both employees and customers.
Common Applications of the Danfoss SC12CL
One reason this compressor remains widely used is its versatility.
Let’s look at where it is commonly found.
Beverage Coolers
Retail beverage coolers experience constant door openings throughout the day.
Every time a customer opens the door, warm air enters the cabinet.
The SC12CL provides the cooling capacity needed to recover temperatures quickly and maintain product quality.
Commercial Refrigerators
Restaurants, bakeries, supermarkets, and convenience stores depend on reliable refrigeration.
The compressor performs well in commercial refrigerators where food safety depends on stable temperatures.
Display Refrigeration Units
Display cabinets must keep products cold while remaining attractive to customers.
Glass doors and frequent access increase cooling demands.
The SC12CL handles these challenges effectively when properly matched to the system.
Medical Refrigeration
Some pharmaceutical and laboratory refrigeration systems require precise temperature control.
Reliability becomes especially important when valuable medications or sensitive materials are involved.
The SC12CL is often selected for applications where consistent cooling is critical.
Small Cold Storage Rooms
Small walk-in coolers and cold rooms frequently use compressors in this capacity range.
These systems benefit from dependable operation and efficient performance.
What Makes Danfoss Compressors Stand Out?
Over the years, I’ve worked with compressors from many manufacturers.
Each brand has strengths and weaknesses, but Danfoss compressors continue to earn respect throughout the refrigeration industry.
Several factors contribute to their popularity.
Strong Industry Reputation
Danfoss products have been used worldwide for decades.
Many technicians are familiar with their design, making service and troubleshooting easier.
Readily Available Components
Replacement parts and accessories are generally easy to source.
This reduces repair delays and simplifies maintenance planning.
Proven Reliability
Perhaps the biggest advantage is reliability.
Many SC-series compressors continue operating effectively for years when maintained properly.
Installation Tips Based on Real Experience
Even the best compressor can fail prematurely if installation procedures are ignored.
I’ve seen this happen more than once.
Here are several important recommendations.
Replace the Filter Drier
Whenever replacing a compressor:
- Remove the old filter drier.
- Install a new compatible drier.
- Ensure correct flow direction.
Moisture and contaminants inside the refrigeration system can severely shorten compressor life.
Pull a Deep Vacuum
This step should never be rushed.
Using a quality vacuum pump and micron gauge helps remove:
- Moisture
- Air
- Non-condensable gases
A proper vacuum improves system reliability and efficiency.
Verify Refrigerant Charge
Incorrect refrigerant charge creates multiple problems.
Undercharged Systems
May experience:
- Poor cooling
- High operating temperatures
- Reduced efficiency
Overcharged Systems
May experience:
- Elevated head pressure
- Excessive compressor workload
- Reduced performance
Accurate charging procedures are essential.
Check Electrical Components
Before startup, inspect:
- Capacitors
- Relays
- Wiring connections
- Overload protectors
- Voltage supply
Many compressor failures originate from electrical issues rather than mechanical defects.
Common Mistakes to Avoid
Learning from mistakes can save both time and money.
These are some of the most common problems I’ve encountered in the field.
Replacing the Compressor Without Diagnosing the Cause
A failed compressor is often the result of another problem.
Possible root causes include:
- Refrigerant leaks
- Dirty condensers
- Airflow restrictions
- Voltage issues
- Moisture contamination
Installing a new compressor without correcting the original issue often leads to repeat failures.
Ignoring Condenser Maintenance
Dirty condenser coils force compressors to work harder.
Consequences include:
- Higher operating temperatures
- Increased energy consumption
- Reduced equipment lifespan
Regular cleaning is one of the simplest ways to improve system performance.
Poor Brazing Practices
Improper brazing can introduce contaminants into refrigeration lines.
Whenever possible:
- Purge with nitrogen
- Use proper brazing temperatures
- Keep tubing interiors clean
These small details make a significant difference over time.
Skipping Leak Testing
Even minor refrigerant leaks reduce system efficiency and increase operating costs.
Always perform thorough leak testing before commissioning the system.
Maintenance Tips for Long-Term Reliability
Preventive maintenance remains one of the best investments in refrigeration equipment.
Clean Condenser Coils Regularly
Dust and dirt reduce heat transfer efficiency.
Clean coils help lower operating temperatures and improve performance.
Monitor Operating Pressures
Routine pressure checks can reveal developing problems before major failures occur.
Inspect Electrical Connections
Loose terminals create resistance and excessive heat.
Periodic inspections help prevent unexpected breakdowns.
Listen for Changes
New noises often indicate emerging issues.
Pay attention to:
- Vibration changes
- Clicking sounds
- Rattling components
- Unusual compressor noise
Early detection can prevent costly repairs.
Maintain Proper Airflow
Blocked airflow increases compressor workload.
Keep condenser areas clean and unobstructed.
Is the Danfoss SC12CL a Good Choice?
Based on practical experience, the Danfoss Hermetic Compressor SC12CL 3/8HP 220-240V remains an excellent option for commercial refrigeration systems requiring dependable cooling performance and long-term reliability.
Its combination of durable construction, efficient operation, reliable starting characteristics, and stable cooling capacity makes it suitable for beverage coolers, commercial refrigerators, display cabinets, medical refrigeration equipment, and small cold storage applications.
What I appreciate most about the SC12CL isn’t a single specification on a datasheet—it’s the consistency. When properly installed, correctly charged, and maintained on a regular schedule, it quietly does its job day after day without demanding constant attention.
For refrigeration technicians, business owners, and maintenance professionals looking for a trusted compressor solution, the Danfoss SC12CL continues to be a practical choice that has earned its reputation through real-world performance rather than marketing promises.
